Freedom Wall Mount Replacement Parts

Freedom WM Parts

Freedom WMNL Parts

Freedom WM LED

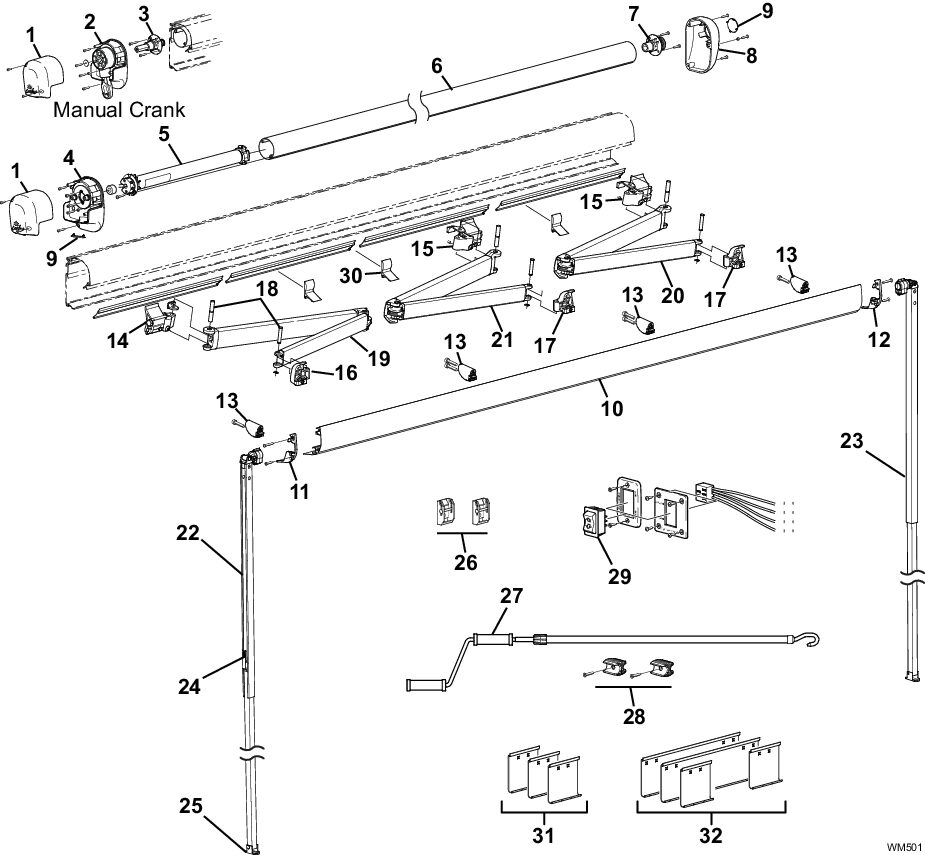

Freedom Wall Mount Parts

Callout # Part Number Description Notes
1 R001618XXX End Cap, LH, Outer
2 R001619XXX Gear Assembly, Manual Crank  3
3 R001622 Roller Tube End Plug, LH, used with manual crank
4 R001861XXX Inner Endcap Assembly, used with motorized
5 R001651 Motor Assy  4,6
6 610900-xxx.xx Roller Tube
7 R001623 Roller Tube End plug, RH
8 R001620XXX End Cap, RH, Outer
9 R040792XXX Plug (-005=white; -006=black; -291=satin)
10 R001811X-aa-xxx Lead Rail 1,2,9
11 R001624XXX End Plate, Lead Rail, LH
12 R001625XXX End Plate, Lead Rail, RH
13 R001621 Ramp Kit, Leadrail
14 R001626 Knuckle Assy, Case, LH  5
15 R001627 Knuckle Assy, Case, RH  5
16 R001628 Assy, Pivot, LH  5
17 R001629 Assy, Pivot, RH  5
18 R001630 Hardware Pack, Arm Attach, 1 Arm
19a
19b
19c
19d
19e		 R012530-TB56L
R012530-TB68L
R012530-TB76L
R012530-TB79L
R012530-TB94L
 Spring Arm, LH (2.2M)
Spring Arm, LH (2.44M)
Spring Arm, LH (2.57M – Used thru 05/2017))
Spring Arm, LH (2.57M – Used 06/2017 & on)
Spring Arm, LH (3M & longer)		 5
5,10
5
5,10
5
20a
20b
20c
20d
20e		 R012530-TB56R
R012530-TB68R
R012530-TB76R
R012530-TB79R
R012530-TB94R
 Spring Arm, RH (2.44M)
Spring Arm, RH (2.57M – Used thru 05/2017)
Spring Arm, RH (2.57M – Used 06/2017 & on)
Spring Arm, RH (3M & longer)		 5
5,10
5
5,10
5
21 R012530-TB94M
 Spring Arm, Center (4.5M and 5M Only) 5,8
22 R001654—- Vertical Support Leg, LH
23 R001654—- Vertical Support Leg, RH
24 R001657 Flipper Latch Kit, Orange  7
25 R00394 Carport Foot
26 R019283—- Bottom Bracket Kit
27 R001546-RP Crank, Telescoping
28 901072 Crank Handle Clip
29 R001605 Switch Kit  6
30 R001969 Arm Bumper
31/32 R019311—- Hardware Pack
The following parts are not displayed in the diagram above.
33 Canopy Canopy Information

NOTES 1. XXX = Color WHT = White; BLK = Black; GRY = Satin
2. –xxx = awning length (2.2m, 2.44m, 2.57m, 3m, 3.5m, 4m, 4.5m, 5m)
3. Gear Assy (item 2) includes gear and inner End Cap assembled. Parts not available separately.
4. Motor Assy (item 5) includes motor, bearing and one-way drive. Parts not available separately.
5. Attaching hardware not included with spring arm assemblies. Order item 18.
6. A motor upgrade kit (SR0097XXX) is available for manual crank awnings and includes motor
assembly (item 5), switch kit (item 29) and attaching hardware.
7. Original vertical support legs use a gray flipper latch. Replacement latch kit is R00144. If leg has
orange flipper latch, Use replacement latch kit R001657.
8. The middle spring arm is different than the outer arms. Center arms can be identified by the blue dot
located on or near the case connector of the arm. Do not use center arms for replacing outer arms,
do not use outer arm to replace the center arm.
9. For Item 10 (lead rail): X= Color; B=Black, W=White, S=Satin. aa = LED; LO= w/ LED outside, LI=
w/ LED Inside, XX=No LED. xxx= product order length.
10. Starting in 2017, the 2.44m awning has a longer extension (80” and uses
arms items 19d, 20d. Previous 2.44m awnings has a shorter extension
(72”) and uses arms items 19b, 20b.
If the extension is not known, measure the location of the arm mount
relative to the endcap.
Arms are not interchangeable between extensions.

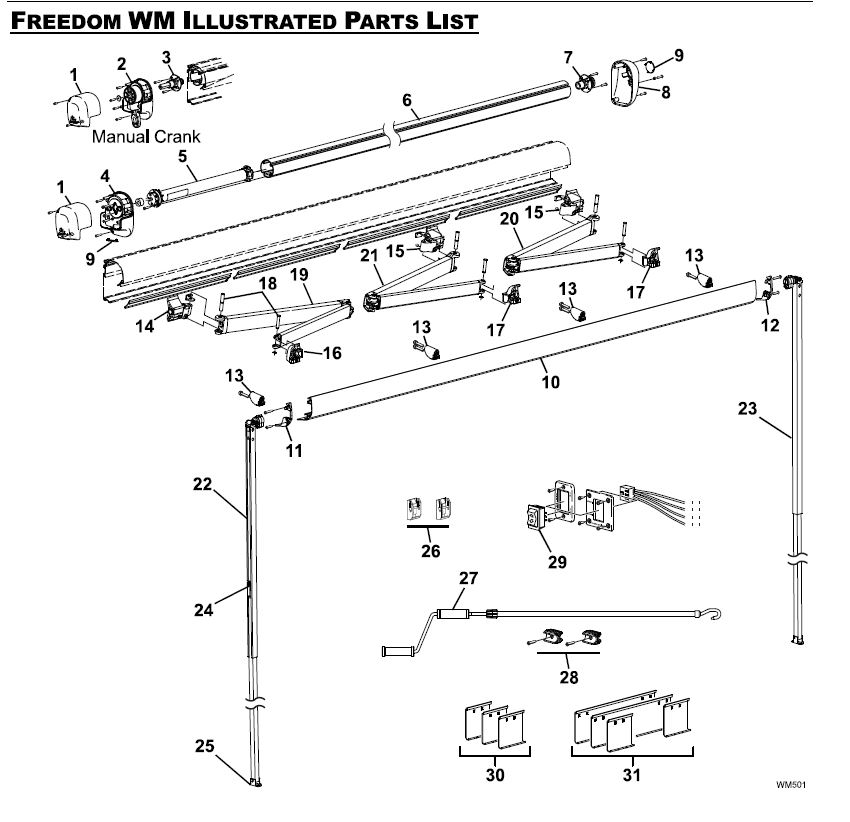

Freedom WMNL Parts





Callout # Part Number Description Notes
1 R001618XXX End Cap, LH, Outer
2 R001619XXX Gear Assembly, Manual Crank 3
3 R001622 Roler Tube Endplug, LH, used with manual crank
4 R001861XXX Inner Endcap Assembly, used with motorized
5 R001651 Motor Assembly  4,6
6 610900-xxx.xx Roller Tube
7 R001623 Roller Tube Endplug, RH
8 R001620XXX End Cap, RH
9 R040792— Plug (-005=white; -006=black; -291=satin)
10 R001811X-aa-xxx Lead Rail 1,2,9
11 R001624XXX End Plate, Lead Rail, LH
12 R001625XXX End Plate, Lead Rail, RH
13 R001621 Ramp Kit, Leadrail
14 R019381-001 Knuckle Assy, Case, LH  5
15 R019381-002 Knuckle Assy, Case, RH  5
16 R001678 Assy, Pivot, LH  5
17 R001680 Assy, Pivot, RH  5
18 R001630 Hardware Pack, Arm Attach, 1 Arm
19a
19b
19c		 R012530-TB68L
R012530-TB76L
R012530-TB79L		 Spring Arm, LH (2.44M – used thru 05/2017)
Spring Arm, LH (2.57M and up – Used thru 05/2017)
Spring Arm, LH (2.44M – Used 06/2017 & On) 		5
5
5
20a
20b
20c		 R012530-TB68R
R012530-TB76R
R012530-TB79R		 Spring Arm, LH (2.44M – used thru 05/2017)
Spring Arm, LH (2.57M and up – Used thru 05/2017)
Spring Arm, LH (2.44M – Used 06/2017 & On) 		5
5
5
21 R001546-RP Crank, Telescoping
22 901072 Crank Handle Clip (qty:2)
23 R001605 Switch Kit 6
24 R001969 Arm Bumper (qty:1)
The following parts are not displayed in the diagram above.
25 R019311—- Hardware Pack
26 901075 Manual Override Key
27 Canopy Information Canopy

NOTES 1. XXX = Color WHT = White; BLK = Black; GRY = Satin
2. –xxx = awning length (2.44m)
3. Gear Assy (item 2) includes gear and inner End Cap assembled. Parts not available separately.
4. Motor Assy (item 3) includes motor, bearing and one-way drive. Parts not available separately.
5. Attaching hardware not included with spring arm assemblies. Order item 17.
6. A motor upgrade kit (SR0097XXX) is available for manual crank awnings and includes inner end cap
(item 4) motor assembly (item 3), switch kit (item 21) and attaching hardware.
7. Starting in 2017, the 2.44m awning has a longer extension (80”) and
uses arms items 19c, 20c. Previous 2.44m awnings has a shorter
extension (72”) and uses arms items 19a, 20a.
If the extension is not known, measure the location of the arm mount
relative to the endcap.
Arms are not interchangeable between extensions.

Freedom WM LED

Callout # Part Number Description Notes
1 R060850-001
R060850-006		 LED, 8mm x 5m, 30LPM, 8″ lead 16′
LED, 8mm x 5m, 30LPM, 8″ lead 23′
2 SR0101 Kit,LED switch
3 R019493-001 Kit, fuseholder with fuse, 2A
4 R060740-001 LED power harness, twisted PVC, 24AWG
5 R040616-206 Wire Channel, 43″, taped
6 R001716 Slot cover, two 1′ pieces
