Latitude Replacement Parts

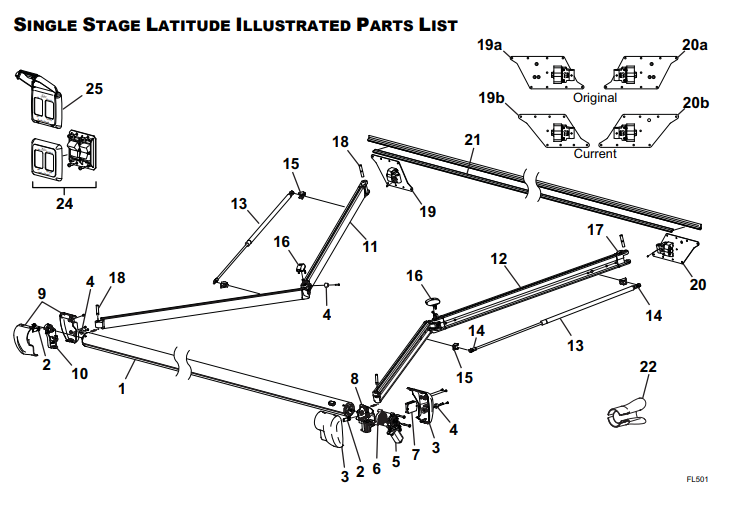

Latitude SS
Latitude
| Callout # | Part Number | Description | Notes |
|---|---|---|---|
| 1 | R001782-xxx | Roller Tube Assembly | 2 |
| 2 | R001848 | Roller Tube Attach Kit (pkg of 2 clipse and retaining rings) | 5 |
| 3 | R001783-00X | Cover Kit, Motor | |
| 4 | R001798 | Bumper | |
| 5 | R001784 | Motor Assembly | |
| 6 | R001810 | Gearbox Assembly | |
| 7 | R060686-003 | Sensor/Control Module, Direct Response | |
| 8 | R012659-001 | Motor Bracket | |
| 9 | R001785-00X | Cover Kit, Idler | |
| 10 | R012660-001 | Idler Bracket | |
| 11 | R001786-10X | Arm Assembly, Left Hand, Single Stage | 3 |
| 12 | R001787-00X | Arm Assembly, Right Hand, Single Stage | 3 |
| 13 | R001788 | Gas Spring, Latitude Single Stage | |
| 14 | R040905-001 | Hook, Gas Spring (pkg of 2) | |
| 15 | R001789 | Support, Gas Spring (pkg of 2) | |
| 16 | R001823 | Barrel, used on Single Stage Only (pkg of 2) | |
| 17 | R001790 | Cable Retainer (used on Single Stage Only) | |
| 18 | R001791 | Arm Attach Kit (One Arm) | 3 |
| 19a | R019397-20X | Mounting Bracket Assembly, Left Hand (Original Configuration) | 4 |
| 19b | R019397-00X | Mounting Bracket Assembly, Left Hand (Current Configuration) | 4 |
| 20a | R019397-30X | Mounting Bracket Assembly, Right Hand (Original Configuration) | 4 |
| 20b | R019397-10X | Mounting Bracket Assembly, Right Hand (Current Configuration) | 4 |
| 21 | R001792-xxx | QuicKonnect | |
| 22 | R040925-001 | Canopy Funnel | |
| 24 | R019468-006 | Switch Kit | |
| 25 | Canopy Replacement | ||
| 26 | R040925-001 | Canopy Funnel | |
| The following parts are not displayed in the diagram above. | |||
| 23 | R060703-006 | Cable Assembly, 5 Conductor | |
| 27 | R019886-00X | Screw Pack, 1/4-20 x 1″ Self-drilling | |
| 28 | R019886-00- | Screw Pack, 1/4 x 2″ Lag | |
NOTES:
1. 0X = Color (05 = White, 06 = Black) xx = Length
2. Roller Tube (item 1) is complete with end bushings, LED strip.
3. Arm assemblies (items 11, 12) includes items 4, 13, 14, 15 and 16. Does NOT include attaching pins. For attach pins order item 18 (1 kit per arm).
4. Original and Current mounting brackets are NOT interchangeable. Replacement brackets must match the existing brackets. Original brackets can be identified by the 3 hole pattern beside the knuckle. (See picture of 19a/b & 20a/b at top of IPL for a visual aide)
5. The roller tube e-clips w/tab replace the previous round e-clips and the push nuts and washers used on the idler side.
