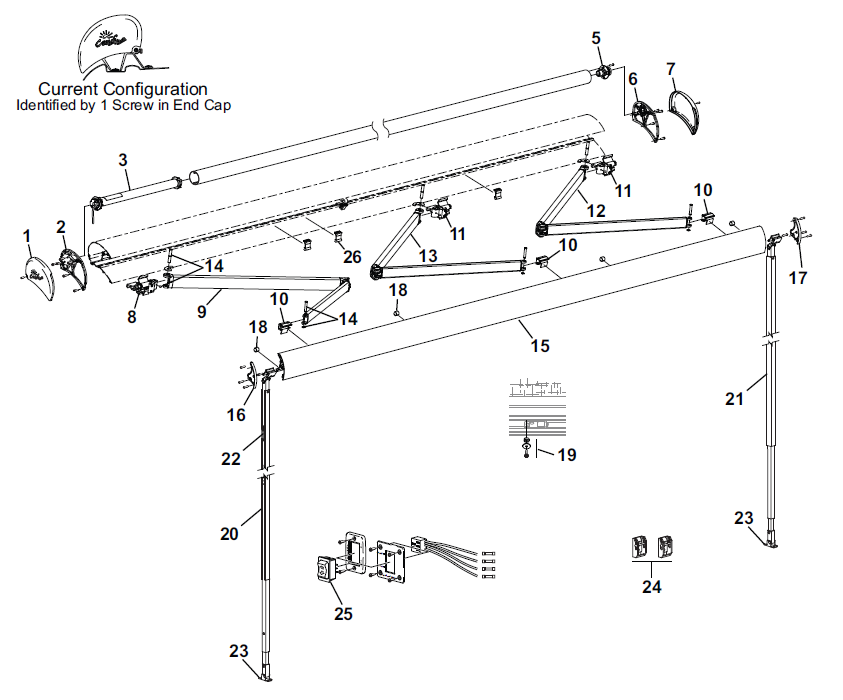

Freedom Roof Mount Replacement Parts
Less Than 4m

Callout # | Part Number | Description | Notes |
---|---|---|---|
1 | R037519-XXX | Encap, LH | |
2 | R037517-001 | Case Endplate, LH | |
3 | R001651 | Motor Assembly | 2 |
4 | 610900-XXX.XX | Roller Tube | |
5 | R001623 | End Plug | |
6 | R037516-001 | Case Endplate, RH | |
7 | R037518-XXX | Endcap Assembly, RH | |
8 | R019280-003 | Connector Assembly, Case, LH | |
9 | R012530-TBXXL | Spring Arm, LH | 1 |
10a | R001872 | Connetor Kit, Lead Rail: Includes 1 LH and 1 RH Connector | |
10b | R001873 | Connetor Kit, Lead Rail: Includes 1 LH and 2 RH Connector | 4 |
11 | R019280-004 | Connector Assembly, Case, RH | 1 |
12 | R012530-TBXXR | Spring Arm, RH | 1 |
13 | R012530-TB94M | Spring Arm, Center | 1,4 |
14 | R001595 | Hardware Pack, Arm Attach, 1 Arm | |
15 | R002014XX-a-xxx | Lead Rail | 3 |
16 | R041353-XXX | Lead Rail End Plate, LH | |
17 | R041352-XXX | Lead Rail End Plate, RH | |
18 | R001691 | Lead Rail Guide Kit – Package of 4 | |
19 | R001690 | Leg Support Kit – (Contains 2 ea. screw, washer and spacer) | |
20 | R001655-00X | Vertical Support Leg, LH | |
21 | R001655-10X | Vertical Support Leg, RH | |
22 | R001657 | Flipper Latch Kit, Orange | |
23 | R00394 | Carport Foot | |
24 | R019283-00X | Kit, Bottom Bracket – Package of 2 | |
25 | R001605 | Switch Kit |
Notes: |
1. Attaching hardware not included with arm assemblies. Order item 9. 2. Motor assembly (item 2) includes motor, bearing and one-way drive. Components not available separately. 3. For item 13 (lead rail): X=Color; B=Black, W=White, S=Satin: aa = LED: LO = w/LED outside, XX = No LED; xxx= product order length. 4. The middle spring arm is different than the outer arms. Center arms can be identified by the blue dot located on or near the case connector of the arm. Do not use center arms for replacing outer arms, do not outer arm to replcae the center arm. |
4.5m and 5m (OEM Model)

Callout # | Part Number | Description | Suggested USD Retail |
---|---|---|---|
1 | R037361—- | Endcap Outer, Manual, LH | from $24.04 |
2 | R001685— | Motor Assembly | from $502.88 |
3 | R001688— | Plug, LH | from $19.16 |
4 | R001686— | Endcap Assembly, RH | from $45.30 |
5 | R001687— | Plug, RH | from $5.52 |
6 | R001689 | Roller Tube Guide | from $37.74 |
7 | R001623 | End Plug, Roller Tube | from $18.84 |
8 | R012530-TB— | Spring Arm Assembly, LH | from $234.81 |
9 | R012530-TB— | Spring Arm Assembly, RH and Center | from $234.81 |
10 | R012530-TB— | Spring Arm Assembly, Center | from $269.66 |
11 | R019280-001 | Connector Assembly, Case, LH | from $53.38 |
12 | R019280-002 | Connector Assembly, Case, RH | from $53.38 |
13 | R001776 | Connector Assembly, Lead Rail | Pricing not available. |
14 | R001595 | Hardware Pack, Arm Attach, 1 Arm | from $65.92 |
15 | R001692 | Tray Support | from $24.61 |
16 | R035444—- | Lead Rail End Plate, LH | Pricing not available. |
17 | R035444—- | Lead Rail End Plate, RH | Pricing not available. |
18 | R001691 | Lead Rail Guide Kit | from $6.45 |
19 | R001655-002 | Vertical Support Leg, LH | from $84.71 |
20 | R001655-102 | Vertical Support Leg, RH | from $84.71 |
21 | R00394 | Carport Foot | from $24.37 |
22 | R001657 | Flipper Latch Kit, Orange | from $9.88 |
23 | R001690 | Leg Support Kit | from $4.61 |
24 | R019283—- | Bottom Bracket Kit | from $28.86 |
25 | R001605 | Switch Kit | from $39.57 |
26 | R014644-201 | Bracket Kit (includes 3 brackets and hardware) | from $55.91 |
27 | R001594— | Plug | from $39.46 |
28 | 901075 | Manual Override Key | from $14.41 |
The following parts are not displayed in the diagram above. | |||
29 | Canopy Information | Canopy |
Freedom RM LED

Callout # | Part Number | Description | Suggested USD Retail |
---|---|---|---|
1 | R060746-001 | LED, 8mm x 5m, 30LPM, 8″ lead 16′ | from $102.54 |
2 | SR0101 | Kit,LED switch | from $29.70 |
3 | R019493-001 | Kit, fuseholder with fuse, 2A | from $18.33 |
4 | R060740-001 | LED power harness, twisted PVC, 24AWG | from $13.40 |
5 | R040616-206 | Wire Channel, 43″, taped | from $18.76 |
6 | R001716 | Slot cover, two 1′ pieces | from $21.25 |
