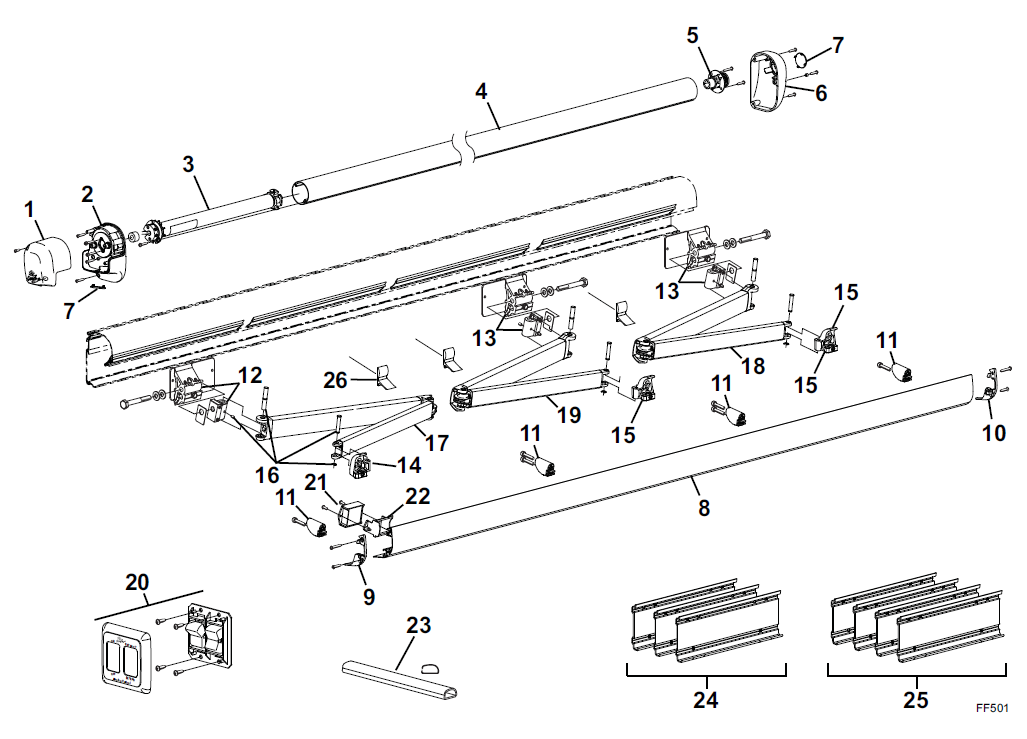

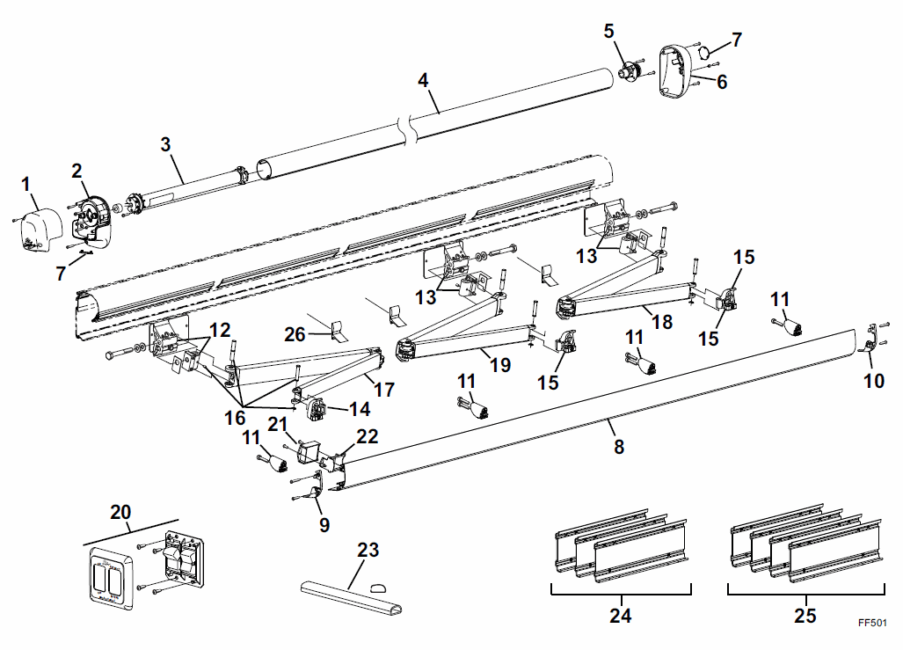

Freedom Freestyle Wall Mount Replacement Parts
| Item # | Part Number | Description | Additional Information | Notes |
|---|---|---|---|---|
| 1 | R001618XXX | Endcap, LH, Outer | 1 | |
| 2 | R001861XXX | Endcap, LH Inner | ||
| 3 | R001862 | Motor Assy, LH | 2 | |
| 4 | 610900-xxx.xx | Roller Tube | ||
| 5 | R001623 | Roller Tube Endplug, RH | ||
| 6 | R001620XXX | Endcap, RH | 1 | |
| 7 | R040792-00X | Plugs | Black / White / Gray | |
| 8 | R001811X-aa-xxx | Lead Rail | 6 | |
| 9 | R001624XXX | End Plate, Lead Rail, LH | 1 | |
| 10 | R001625XXX | End Plate, LEad Rail, RH | 1 | |
| 11 | R001621 | Ramp Kit, Leadrail | ||
| 12 | R001865 | Case Connector, LH | 3 | |
| 13 | R001864 | Case Connector, RH | ||
| 14 | R001678 | Pivot Assy, Lead Rail, LH | 3 | |
| 15 | R001680 | Pivot Assy, Lead Rail, RH | 3 | |
| 16 | R001630 | Hardware Pack, Arm Attach, 1 Arm | ||
| 17a 17b 17c 17d |
R012530-TB68L R012530-TB76L R012530-TB79L R012530-TB94L |
Spring Arm, LH Spring Arm, LH Spring Arm, LH Spring Arm, LH |
2.44M 2.57M – Used thru 05/2017 2.57M – Used 06/2017 & on 3M & longer |
3 3,7 3,7 3,7 |
| 18a 18b 18c 18d |
R012530-TB68R R012530-TB76R R012530-TB79R R012530-TB94R |
Spring Arm, RH Spring Arm, RH Spring Arm, RH Spring Arm, RH |
2.44M 2.57M – Used thru 05/2017 2.57M – Used 06/2017 & on 3M & longer |
3 3,7 3,7 3,7 |
| 19a 19b 19c |
R012530-TB94M R012530-TB76M R012530-TB79M |
Spring Arm, Center Spring Arm, Center Spring Arm, Center |
4.5M and 5M Only 4M DX Style Only – Used thru 05/2017 4M DX Style Only – Used 06/2017 & On |
3,5,7 3,5,7 3,5,7 |
| 20 | R019468-006 | Switch Kit | ||
| 21 | R060686-004 | Sensor/Control Module | ||
| 22 | R001679 | Bracket Kit, Sensor | ||
| 23 | R040616-206 | Cable Channel, 43″ | ||
| 24 | R019867-001 | Bracket Kit | 3m-4m | 4 |
| 25 | R019867-002 | Bracket Kit | 4.5m-5m | 4 |
| 26 | R001969 | Arm Bumper | qty: 1 | |
| The following parts are not displayed in the diagram above. | ||||
| 27 | 019868-00- | Screw Pack, Awning Mount, 3m-4m & 4.5m-5m | ||
| 28 | R060701-00- | Sensor Harness | ||
Notes: 1: XXX = Color: WHT = White; BLK = Black; GRY = Satin
2: Motor assembly (item 3) includes motor, bearing and one-way drive. Parts not available separately.
3: Attaching hardware not included with spring arm assemblies. Order item 16.
4: Bracket kit 3m-4m contains 3 brackets and screws. Bracket Kit for 4.5m-5m contains 4 brackets. Bracket kits do not include awning mounting screws; order item 25.
5: The middle spring arm is different than the outer arms. Center arms can be identified by the blue dot located on or near the case connector of the arm. Do not use center arms for replacing outer arms, do not use outer arms to replace the center arm.
6: For item 8 (lead rail): X = Color: B = Black; W = White; S = Satin. aa = LED: LI = w/LED Inside; XX = No LED. xxx = product order length.
7: Style code DX (4M length) uses 3 arms:
items 17b, 18b, 19b thru 05/2017;
items 17c, 18c, 19c 06/2017 & on.
8: Harness (item 27) includes integrated LED harness.
