Freedom Wall Mount No Legs (WMNL)

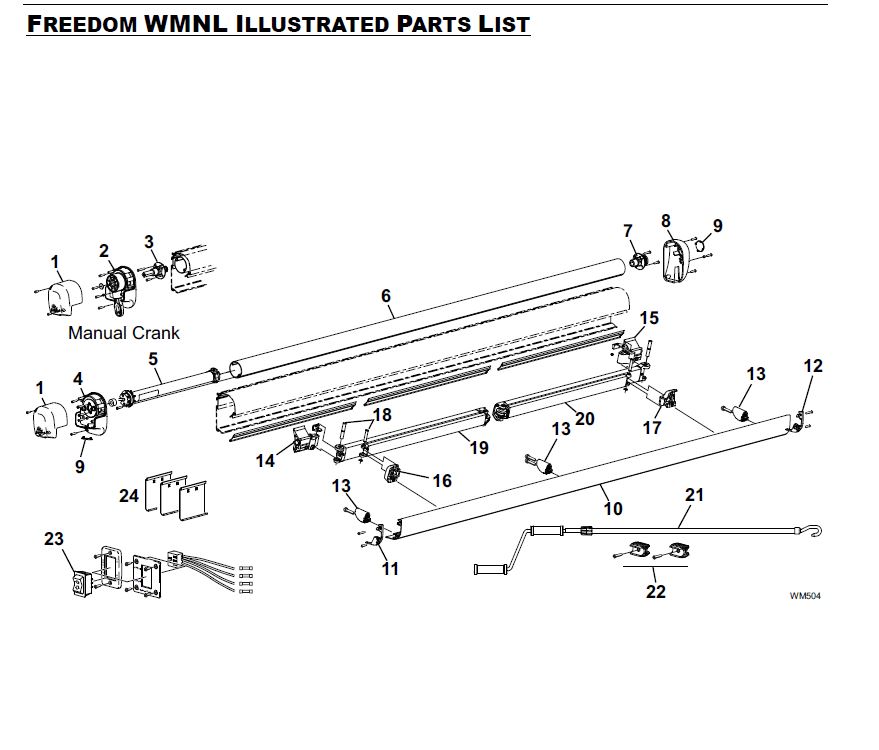

Freedom Wall Mount No Legs (WMNL) Parts
Freedom WMNL LED
Freedom Wall Mount Parts
| Callout # | Part Number | Description | Notes |
|---|---|---|---|
| 1 | R001618— | End Cap, LH, Outer | |
| 2 | R001619— | Gear Assembly, Manual Crank | 3 |
| 3 | R001622 | Roler Tube Endplug, LH, used with manual crank | |
| 4 | R001861— | Inner Endcap Assembly, used with motirized | |
| 5 | R001651 | Motor Assembly | 4,6 |
| 6 | 610900-xxx.xx | Roller Tube | |
| 7 | R001623 | Roller Tube Endplug, RH | |
| 8 | R001620— | End Cap, RH | |
| 9 | R040792— | Plug (-005=white; -006=black; -291=satin) | |
| 10 | R001811X-aa-xxx | Lead Rail | |
| 11 | R001624— | End Plate, Lead Rail, LH | |
| 12 | R001625— | End Plate, Lead Rail, RH | |
| 13 | R001621 | Ramp Kit, Leadrail | |
| 14 | R019381-001 | Knuckle Assy, Case, LH | 5 |
| 15 | R019381-002 | Knuckle Assy, Case, RH | 5 |
| 16 | R001678 | Assy, Pivot, LH | 5 |
| 17 | R001680 | Assy, Pivot, RH | 5 |
| 18 | R001630 | Hardware Pack, Arm Attach, 1 Arm | |
| 19a | R012530-TB76L | Vertical Support Leg, LH used thru 05/2017 | 5 |
| 19b | R012530-TB79L | Vertical Support Leg, LH used 06/2017 & on | 5 |
| 19c | 5 | ||
| 20a | R012530-TB76R | Vertical Support Leg, RH used thru 05/2017 | 5 |
| 20b | R012530-TB79R | Vertical Support Leg, RH used thru 05/2017 | 5 |
| 20c | 5 | ||
| 21 | R001546-RP | Crank, Telescoping | |
| 22 | 901072 | Crank Handle Clip | |
| 23 | R001605 | Switch Kit | |
| 24 | R019311—- | Hardware Pack | |
| 28 | 901075 | Manual Override Key | |
| The following parts are not displayed in the diagram above. | |||
| 29 | Canopy Information | Canopy | |
| 30 | R012530-TB–M | Spring Arm, Middle | |
| 31 | R001861— | End Cap, LH, Inner | |
NOTES 1. XXX = Color WHT = White; BLK = Black; GRY = Satin
2. –xxx = awning length (2.44m)
3. Gear Assy (item 2) includes gear and inner End Cap assembled. Parts not available separately.
4. Motor Assy (item 3) includes motor, bearing and one-way drive. Parts not available separately.
5. Attaching hardware not included with spring arm assemblies. Order item 17.
6. A motor upgrade kit (SR0097XXX) is available for manual crank awnings and includes inner end cap
(item 4) motor assembly (item 3), switch kit (item 21) and attaching hardware.
7. Starting in 2017, the 2.44m awning has a longer extension (80”) and
uses arms items 19c, 20c. Previous 2.44m awnings has a shorter
extension (72”) and uses arms items 19a, 20a.
If the extension is not known, measure the location of the arm mount
relative to the endcap.
Arms are not interchangeable between extensions.
Freedom WM LED
| Callout # | Part Number | Description | Suggested USD Retail |
|---|---|---|---|
| 1 | R060746-001 | LED, 8mm x 5m, 30LPM, 8″ lead 16′ | from $102.54 |
| 2 | SR0101 | Kit,LED switch | from $29.70 |
| 3 | R019493-001 | Kit, fuseholder with fuse, 2A | from $18.33 |
| 4 | R060740-001 | LED power harness, twisted PVC, 24AWG | from $13.40 |
| 5 | R040616-206 | Wire Channel, 43″, taped | from $18.76 |
| 6 | R001716 | Slot cover, two 1′ pieces | from $21.25 |
