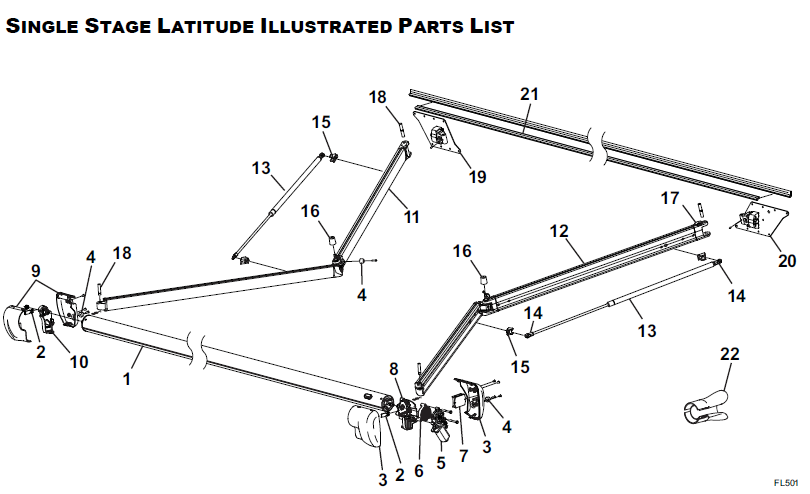

Latitude Replacement Parts
| Callout # | Part Number | Description | Suggested USD Retail |
|---|---|---|---|
| 1 | R001782—- | Roller Tube Assembly | from $341.28 |
| 2 | R001848 | Roller Tube Attach Kit | from $6.25 |
| 3 | R001783-00- | Cover Kit, Motor | from $26.70 |
| 4 | R001798 | Bumper | from $7.17 |
| 5 | R001784 | Motor Assembly | from $112.01 |
| 6 | R001810 | Gearbox Assembly | from $22.10 |
| 7 | R060686-003 | Sensor/Control Module, Direct Response | from $163.98 |
| 8 | R012659-001 | Motor Bracket | from $30.07 |
| 9 | R001785-00- | Cover Kit, Idler | from $29.93 |
| 10 | R012660-001 | Idler Bracket | from $29.86 |
| 11 | R001786-10- | Arm Assembly, Left Hand, Single Stage | from $402.68 |
| 12 | R001787-00- | Arm Assembly, Right Hand, Single Stage | from $402.68 |
| 13 | R001788 | Gas Spring, Latitude Single Stage | from $52.65 |
| 14 | R040905-001 | Hook, Gas Spring | from $7.36 |
| 15 | R001789 | Support, Gas Spring | from $6.93 |
| 16 | R001823 | Barrel, used on Single Stage Only | from $4.34 |
| 17 | R001790 | Cable Retainer | from $6.29 |
| 18 | R001791 | Arm Attach Kit | from $17.35 |
| 19 | R019397-00X | Mounting Bracket Assembly, Left Hand | from $131.24 |
| 20 | R019397-10X | Mounting Bracket Assembly, Right Hand | from $134.08 |
| 21 | R001792—- | QuicKonnect | from $52.24 |
| 22 | R040925-001 | Canopy Funnel | from $5.98 |
| The following parts are not displayed in the diagram above. | |||
| 23 | R060703-006 | Cable Assembly, 5 Conductor | from $46.90 |
| 25 | R019886-00-S | Screw Pack, 1/4-20 x 1″ Self-drilling | from $21.87 |
| 26 | R019886-00- | Screw Pack, 1/4 x 2″ Lag | from $24.14 |
