Latitude Over The Door (OTD) Replacement Parts

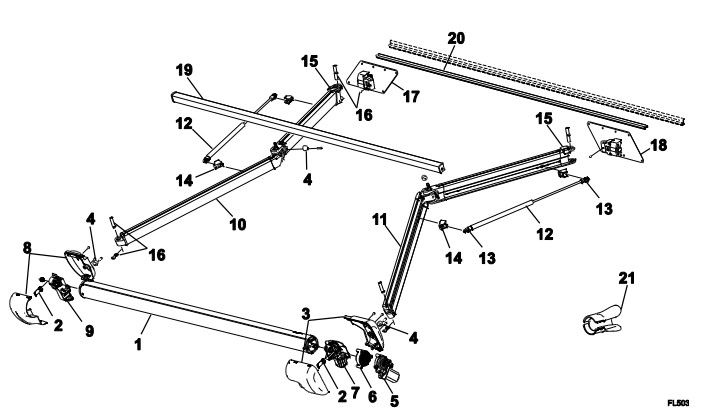

Latitude OTD Parts
| Item # | Part Number | Description | Additional Information | Notes |
|---|---|---|---|---|
| ∞ | LEDs | Replacement parts for the LEDs including LED strips & other electronics | ||
| 1 | R001782-XXX | Roller Tube Assembly | 2 | |
| 2 | R001848 | Roller Tube Attach Kit | pkg of 2 clips and retaining rings | |
| 3 | R001783-00X | Cover Kit, Motor | ||
| 4 | R001798 | Bumper | ||
| 5 | R001784 | Motor Assembly | ||
| 6 | R001810 | Gearbox | ||
| 7 | R012659-001 | Motor Bracket | ||
| 8 | R001785-00X | Cover Kit, Idler | ||
| 9 | R012660-001 | Idler Bracket | ||
| 10 | R001953-00X | Arm Assy, LH | 3 | |
| 11 | R001954-00X | Arm Assy, RH | ||
| 12 | R001952 | Gas Spring | ||
| 13 | R040905-001 | Hook, Gas Spring | pkg of 2 | |
| 14 | R001789 | Support, Gas Spring | pkg of 2 | |
| 15 | R001796 | Ramp, Midrail | pkg of 2 | |
| 16 | R001791 | Arm Attach Kit | One arm | 3 |
| 17 | R019580-005 | Mounting Bracket Assy, LH | Only Available in White | |
| 18 | R019580-10X | Mounting Bracket Assy, RH | No Longer Available | |
| 19 | R001797-XXX-xxx | Middle Rail Assy | ||
| 20 | R001792-xxx | QuickKonnect | ||
| 21 | R040925-001 | Canopy Funnel | ||
| 22 | Canopy Only | |||
| The following parts are not displayed in the diagram above. | ||||
| 23 | R019886-00X | Screw Pack, 1/4-20 x 1″ Self-drilling | Available in Black or White | |
| 24 | R019886-00X | Screw Pack, 1/4 x 2″ Lag | Available in Black or White | |
2: Roller tube (item 1) is complete with end bushings, LED strip.
3: Arm assemblies (items 10, 11) includes items 4, 12, 13, 14. Does not include attaching pins. For attach pins order item 16 (1 kit per arm).
