Freedom RM Replacement Parts: Original 4.5M & 5M
Freedom RM Parts

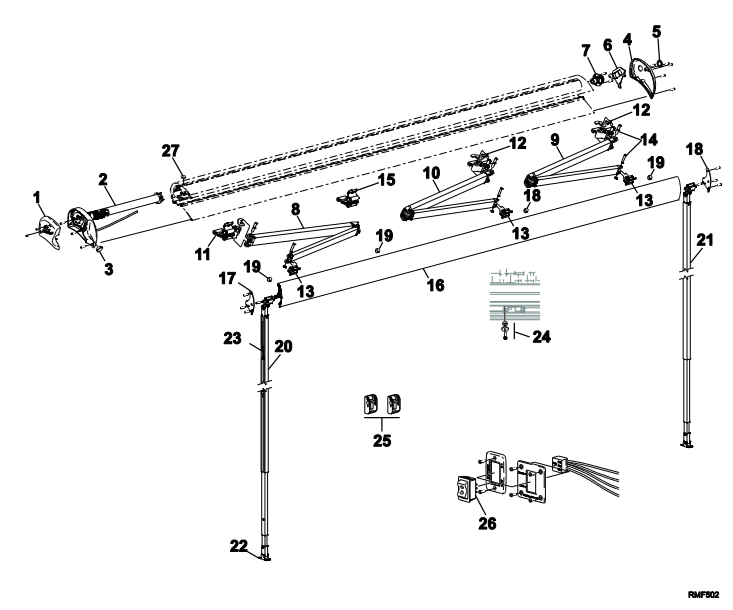

Freedom Roof Mount Parts
| Item # | Part Number | Description | Additional Information | Notes |
|---|---|---|---|---|
| 1 | R037361-XXX | Endcap Outer, Manual, LH | Available in Black, White & Satin | |
| 2 | R001685XXX | Motor Assembly | No Longer Available | 2 |
| 3 | R001688XXX | Plug, LH | No Longer Available | |
| 4 | R001686XXX | Endcap Assembly, RH | No Longer Available | |
| 5 | R040832-001 | Plug, RH | Only Available in White | |
| 6 | R001689 | Roller Tube Guide | ||
| 7 | R001623 | End Plug, Roller Tube | ||
| 8 | R012530-TB94L | Spring Arm Assembly, LH | 1 | |
| 9 | R012530-TB94R | Spring Arm Assembly, RH | 1 | |
| 10 | R012530-TB94M | Spring Arm Assembly, Center | Used on 4.5M and 5M Only. | 1,3 |
| 11 | R019280-001 | Connector Assembly, Case, LH | 1,4 | |
| 12 | R019280-002 | Connector Assembly, Case, RH | 1,4 | |
| 13 | R001776 | Connector Assembly, Lead Rail | 1,5 | |
| 14 | R001595 | Hardware Pack, Arm Attach, 1 Arm | 1 | |
| 15 | R001692 | Tray Support | 1 | |
| 16 | R002014XX-()-xxx | Lead Rail | ||
| 17 | R040981-XXX | Lead Rail End Plate, LH | Left and Right End Plates are identical. | |
| 18 | R040981-XXX | Lead Rail End Plate, RH | Left and Right End Plates are identical. | |
| 19 | R001691 | Lead Rail Guide Kit | pkg of 4 | |
| 20 | R001655-002 | Vertical Support Leg, LH | ||
| 21 | R001655-102 | Vertical Support Leg, RH | ||
| 22 | R00394 | Carport Foot | ||
| 23 | R001657 | Flipper Latch Kit, Orange | ||
| 24 | R001690 | Leg Support Kit | Contains 2 ea. screw, washer and spacer | |
| 25 | R019283-00X | Kit, Bottom Bracket | pkg of 2 | |
| 26 | R001605 | Switch Kit | ||
| 27 | R001594-XXX | Plug |
Notes:
1. Attaching hardware not included with arm assemblies. Order item 14.
2. Motor assembly (item 3) includes motor, bearing and one-way drive and end cap. Motor Components not available separately.
3. The middle spring arm is different than the outer arms. Center arms can be identified by the blue dot located on or near the case connector of the arm. Do not use center arms for replacing outer arms, do not use outer arms to replcae the center arm.
4. If replacing an original fixed pitch case connector, replace all case connectors.
5. If replacing an original fixed position lead rail connector, replace all lead rail connectors.
6. For item 16 (lead rail): X= Color; B=Black, W=White, S=Satin. aa = LED; LO= W/LED outside, LI=W/LED inside, XX=No LED. xxx= product order length.
