Freedom RM Replacement Parts: Manual
Freedom RM Parts

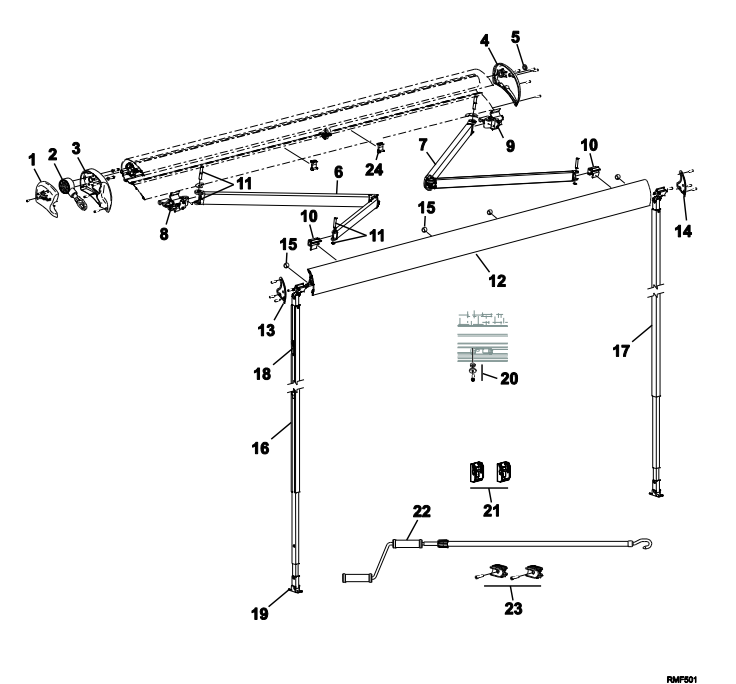

Freedom Roof Mount Parts
| Item # | Part Number | Description | Additional Information | Notes |
|---|---|---|---|---|
| 1 | R037361-XXX | Endcap, LH | ||
| 2 | R062777-XXX | Gearbox, Manual | ||
| 3 | R037360-XXX | Endcap, Inner, Manual, LH | ||
| 4 | R001594XXX | Endcap Assembly, RH | ||
| 5 | R040832-001 R040665-002 |
Plug, White Plug, Black |
||
| 6a 6b 6c 6d |
R012530-TB68L R012530-TB76L R012530-TB79L R012530-TB94L |
Spring Arm, LH Spring Arm, LH Spring Arm, LH Spring Arm, LH |
2.44M 2.57M – Used Thru 05/2017 2.57M – Used 06/2017 & On 3M and up |
1 1 1 |
| 7a 7b 7c 7d |
R012530-TB68R R012530-TB76R R012530-TB79R R012530-TB94R |
Spring Arm, RH Spring Arm, RH Spring Arm, RH Spring Arm, RH |
2.44M 2.57M – Used Thru 05/2017 2.57M – Used 06/2017 & On 3M and up |
1 1 1 |
| 8 | R019280-001 | Connector Assembly, Case, LH | 1,3 | |
| 9 | R019280-002 | Connector Assembly, Case, RH | 1,3 | |
| 10 | R001872 | Connetor Kit, Lead Rail | Includes 1 LH and 1 RH Connector | 1,4 |
| 11 | R001595 | Hardware Pack, Arm Attach, 1 Arm | 12 | R002014XX-()-xxx | Lead Rail | 5 |
| 13 |
R040981-XXX |
Lead Rail End Plate, LH | Left and Right End Plates are identical. | |
| 14 | R040981-XXX | Lead Rail End Plate, RH | Left and Right End Plates are identical. | |
| 15 | R001691 | Lead Rail Guide Kit | Pkg of 4 | |
| 16 | R001655-00X | Vertical Support Leg, LH | ||
| 17 | R001655-10X | Vertical Support Leg, RH | ||
| 18 | R001657 | Flipper Latch Kit, Orange | Package of 4 | |
| 19 | R00394 | Carport Foot | ||
| 20 | R001690 | Leg Support Kit | contains 2 ea. screw, washer and spacer. | |
| 21 | R019283-XXX | Kit, Bottom Bracket | pkg of 2 | |
| 22 | R001546-RP | Crank Handle | ||
| 23 | 901072 | Crank Handle Clip | pkg of 2 | |
| 24 | R001970 | Arm Bumper | qty: 1 |
Notes:
1. Attaching hardware not included with arm assemblies. Order item 11.
2. A motor upgrade kit (SR0098XXX) is available for manual crank awnings and includes endcap, motor assembly, switch kit and attaching hardware.
3: If replacing an original fixed pitch case connector, replace both case connectors.
4: If replacing an original lead rail connector, replace both lead rail connectors.
5: For item 12 (lead rail): XX =Color; () = LED: L = w/LED, X=No LED; xxx = product order length.
