Fiesta HD Replacement Parts
Fiesta Parts
Fiesta LED

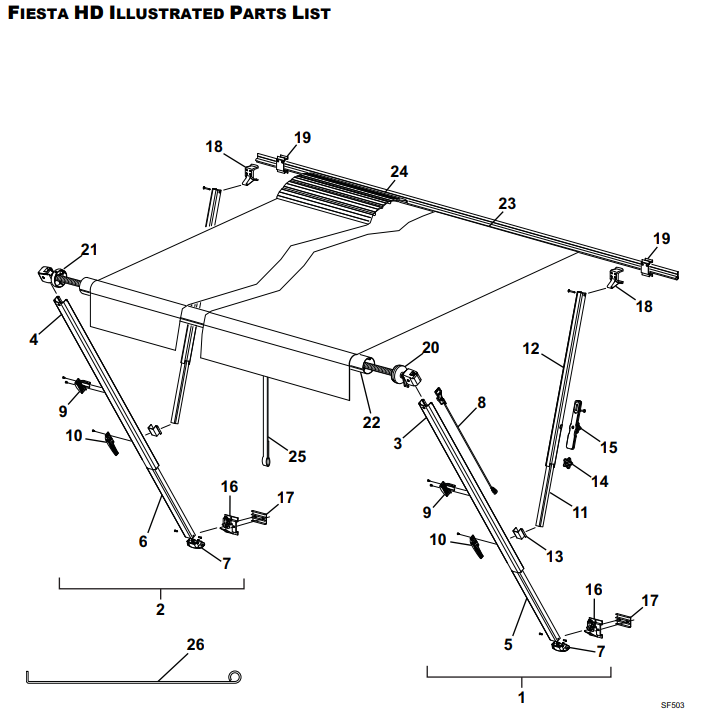

Fiesta Parts
| Item # | Part Number | Description | Additional Information | Notes |
|---|---|---|---|---|
| ∞ | Full Set Hardware | Both Arms | ||
| 1 | R001891-9nn-XX | 1/2 Set Hardware, Front / Right | 1,2 | |
| 2 | R001892-9nn-XX | 1/2 Set Hardware, Rear / Left | 1,2 | |
| 3 | R001893-9nn-XX | Upper Main Arm, Front / Right | Includes items 8, 9, 10 | |
| 4 | R001894-9nn-XX | Upper Main Arm, Rear / Left | Includes items 9,10 | 1,2 |
| 5 | R001895-9nn-XX | Lower Main Arm, Front / Right | Includes item 7 | 1,2 |
| 6 | R001896-9nn-XX | Lower Main Arm, Rear / Left | Includes item 7 | 1,2 |
| 7 | 901020 901020W |
Carport Foot, Black Carport Foot, White |
||
| 8 | 901097HD 901097HDW 901097HDB |
Remote Lock Kit – Orange Remote Lock Kit – White Remote Lock Kit – Black |
||
| 9 | 901096HD 901096HDW 901096HDB |
Travel Lock Kit – Orange Travel Lock Kit – White Travel Lock Kit – Black |
||
| 10 | 901015W 901015 |
Handle, White Handle, Black |
||
| 11 | R001898-005 R001898-006 |
Lower Brace, White Lower Brace, Black |
Includes item 13 Includes item 13 |
|
| 12 | R001897-005 R001897-006 |
Upper Brace, White Upper Brace, Black |
Includes item 14,15,18 Includes item 14,15,18 |
|
| 13 | R00405 | Brace Slider | ||
| 14 | 901022 | Locking Knob | ||
| 15 | 901098HD | Canopy Clamp – Orange | pkg of 2 | |
| 16 | 901019W 901019 |
Bottom Bracket, White Bottom Bracket, Black |
||
| 17 | R00716 | Bottom Bracket, Shim, Optional | pkg of 2 | |
| 18 | 901018W 901018 |
Top Bracket, White Top Bracket, Black |
||
| 19 | 249153 | Top Bracket Stand-Off | Optional | |
| 20a 20b 20c |
R00926-XXX-A R00925-XXX-A R00926-XXX-A |
Spring Assembly, RH Spring Assembly, RH Spring Assembly, RH |
7’11” or less,br>8′-18′ 18’1″ and longer |
3,4 3 3 |
| 21a 21b 21c |
R00923XXX-A R00924XXX-A R098226-005 R098226-006 |
Spring Assy, LH Spring Assy, LH Idler End Cap, White (Does Not Include a Spring) Idler End Cap, Black (Does Not Include a Spring) |
3 3 4 4 |
|
| 22 | 19xx00 | Roller Tube, 4-Slot | 3 1/2″ Diameter | |
| 23 | Canopy Replacement | Fabric Replacement Only | ||
| 24 | 20xx36XXX | Alumaguard Only | ||
| 25 | 901011 | Pull Strap | ||
| 26 | 901035 901035XL |
Pull Wand – 43″ Pull Wand – 60″ |
||
| The following parts are not displayed in the diagram above. | ||||
| 27 | R012479-006 R012479-005 |
Hardware Pack Hardware Pack |
Black Castings White Arms w/ White Castings |
|
| 28 | 901035 901035XL |
Pull Wand – 43″ Pull Wand – 60″ |
||
| 29 | 030573 | Slider Set Screw | ||
Notes: 1: XX = Color: 66 = Black; 55 = White
2: nn = Arm Style: -901 = Universal; -916 = Long
3: For spring assemblies (items 20a, 20b, 20c, 21a, 21b), XXX = Color: BLK = Black; WHT = White
4: Awnings 7’11” and shorter use only one RH spring (21a), no left hand spring.
Fiesta LED
| Callout # | Part Number | Description | Notes |
|---|---|---|---|
| 1 | R060850—- | LED, 8mm x 5m, 30LPM, 8″ lead 16′ | |
| 2 | SR0101 | Kit,LED switch | |
| 3 | R019493-001 | Kit, fuseholder with fuse, 2A | |
| 4 | R060718-001 | LED Power Cable, 22 feet | |
| 5 | R001716 | Slot cover, two 1′ pieces |
