Ascent Replacement Parts
| Item # | Part Number | Description | Additional Information | Notes |
|---|---|---|---|---|
| 1 | R001564XXX-xxx | Deflector | Standard | |
| 2 | R001565XXX-xxx | Deflector, Half | XL Only | |
| 3 | R001555 | Spacer, Shoulder | XL Only | |
| 4 | R001563 | Deflector Glide, 24″ | pkg of 1 | |
| 5a | KY55x1-A | Bracket Kit, 2 Brackets, Deflector Mount | 7 | |
| 5b | KY55x2-A | Bracket Kit, 3 Brackets, Deflector Mount | 7 | |
| 5c | KY55x3-A | Bracket Kit, 5 Brackets, Deflector Mount | 7 | |
| 6 | R001151XXX | Cover, Mounting Bracket | ||
| 7 | R001554XXX | End Cap, LH | ||
| 8 | R001556XXX | End Cap, RH | ||
| 9a | 610701-xxxX | Awning Rail, Hooded | Used w/ slat | |
| 9b | 610700-xxxXXX | Awning Rail, Standard | Used when slat not installed | |
| 10 | R001248XXX-xxx | Soft Connect | ||
| 11 | R001566XXX-xxx | Weather Slat | Standard – 1 piece | 6,8 |
| 12 | R001567XXX-xxx | Weather Slat | XL Only – 2 pieces | 2,6,8 |
| 13 | R001553XXX | End Plate, Slat, LH | 6 | |
| 14 | R001558XXX | End Plate, Slat, RH | 6 | |
| 15 | R001568-xxx | Roller Tube Assembly | Standard | 3 |
| 16 | R001569-xxx | Roller Tube Half, LH | XL Only | 4 |
| 17 | R001572-xxx | Roller Tube Half, RH | XL Only | 5 |
| 17a | R038303-008 | Splice | ||
| 18 | R001559 | Spindle and Bearing Assembly, LH | Standard | |
| 19 | R001877 | Spring Assembly Kit | XL Only | 9 |
| 20 | R001560 | Spring Assembly, RH | identified with orange marking | |
| 21 | R041481-001 | Spring Sleeve | used with single slot roller tube | |
| 22 | R001570XXX-xxx | Cover Assembly | Standard | |
| 23a | R001571XXX-xxx | Cover Assembly, 2 piece | XL only | 2 |
| 23b | R038289-xxx-XXX | Cover Assembly, 1 piece | XL only | |
| 24 | R001562 | Bumper, Front Cover | pkg of 4 (24″ ea) | |
| 25 | Canopy Information | Canopy Only | ||

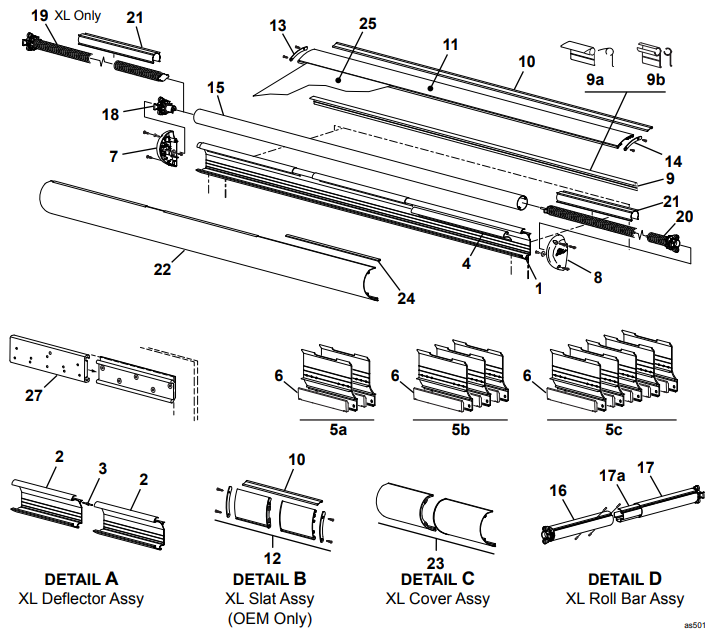

| The following parts are not displayed in the diagram above. | ||||
| 5d | R001711 | Mounting Shim, 7.5″ x 1″ x 3/16″ | pkg of 1 | 7 |
| 27 | BX0013-2-XXX | Carefree Slide Topper Prepped Access Plate Adapter Kit | ||
| R012739-001 | Hardware Pack, Standard | |||
| R012749-001 | Hardware Pack, XL | |||
Notes:
XXX = Color; xxx = Length in inches
2. Ascent XL components (items 12, 23a) are shipped in two pieces and must be assembled during installation.
3. Roller tube assy (item 15) is complete and includes roller tube, LH spindle assy (item 18) and pre-wound RH spring assy (item 20).
4. XL LH roller tube assy (item 16) is complete and includes roller tube half, screws and pre-wound LH spring assy
5. XL RH roller tube assy (item 17) is complete and includes roller tube half, splice, screws and pre-wound RH spring assy.
6. The slat option is offered for select OEM installations and is not available for aftermarket installations. Includes items 10, 13, 14.
7. Bracket kits (items 5) are based on order length. Item 5a used with awnings 112″ or less; item 5b used with awnings 118″ – 196″; item 5c used with XL awnings 202″ and longer.
8. Slat (item 11, 12) comes with flex connect (item 10) and end plates (items 13, 14).
9. Spring assy kit (item 19) contains both the LH spring (marked white) and the RH spring (marked orange). Both springs should be replaced to ensure that the springs are the same strength on both sides of the slideout cover.
