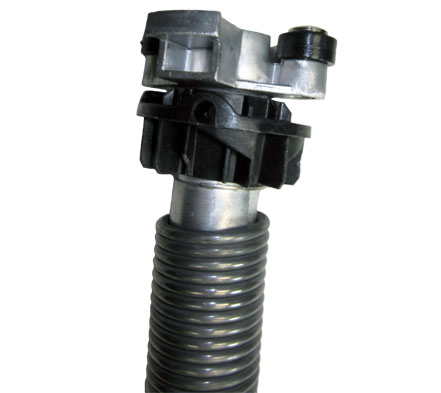

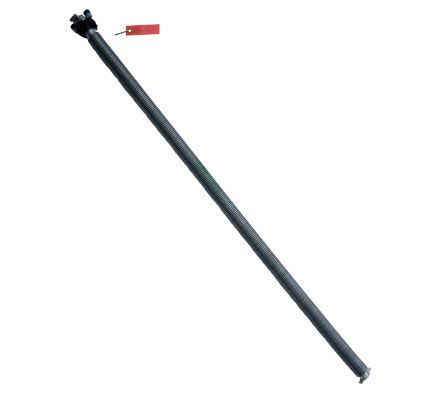

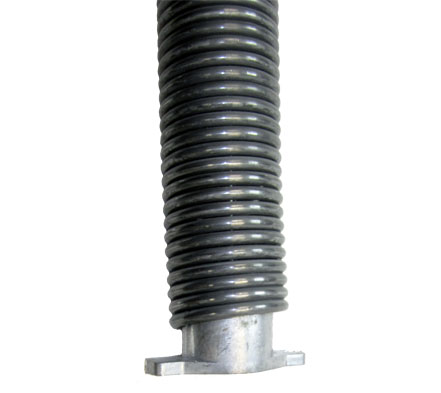

Spring Assy. Left – XL Ascent Slide out Awning
Left Hand Spring Replacement Assembly for Carefree XL Ascent only.
Color = SATIN. Quantity – 1. Approximately 46″ in length.
See Important Considerations below.
$131.78
- The springs are wound and under tension. The spring locking pins must be inserted before continuing otherwise the roller tube can spin out of control and cause personal injury and/or property damage.
- IMPORTANT NOTE: The XL model has two springs. A second spring locking pin must also be inserted through the LH spindle and taped in place before continuing.
- CAUTION: The spring is wound and under tension. When the pin is removed, the spindle will turn rapidly. To avoid personal injury, keep hands away from the spindle until the spring has unwound.
- Replacement spring ships with no tension.
- NOTE: Have a spring locking pin available. The pin should be a solid 3/16 x 1 1/4 shaft with a flat end such as a drill bit. If using a 3/16 cotter pin, cut the two legs flush so that the end is flat.
