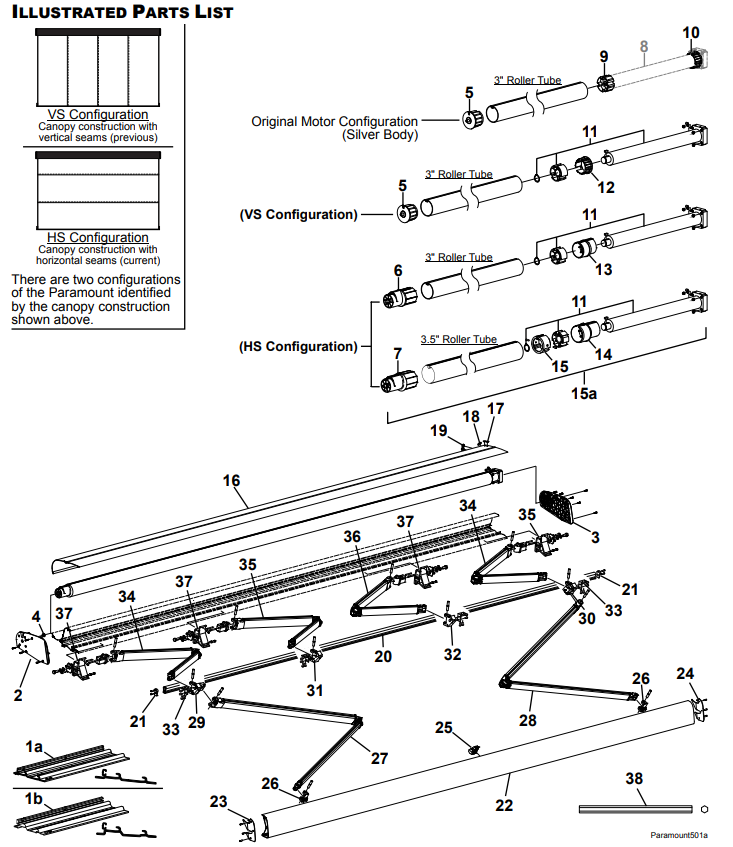

Paramount Canopy Replacement Parts

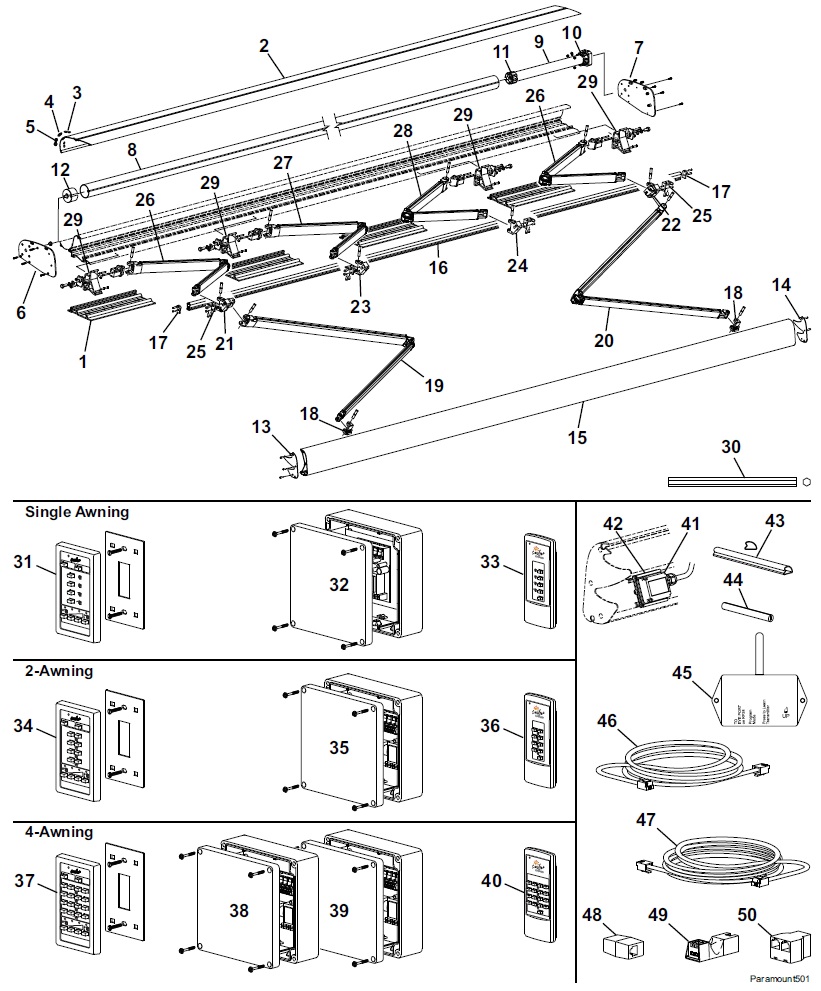

Awning Components
Awning Components
| Item | Part Number | Description | Notes |
|---|---|---|---|
| 1a 1b |
GJ0001 GJ0002-X-xx |
Mounting Plate Kit, 0° (used on roofs with a pitch greater than 3°) Mounting Plate Kit, 3° (used on roofs with a pitch from 0° to 3°) |
|
| 2 | R001376 R001375 |
End Plate Assy, LH, Idler End Plate Assy, RH, Motor |
|
| 3 | R001377 R001378 |
End Plate Assy, RH, Motor End Plate Assy, LH, Idler |
|
| 4 | R035310-002 | Bushing, Idler | |
| 5 | R001054 | End Plug, Idler (Used with VS Configuration – 3″ Roller Tube) | 6 |
| 6 | R041335-001 | End Plug, Idler )Used with HS Configuration – 3″ Roller Tube) | 6 |
| 7 | R041581-001 | End Plug, Idler (Used with HS Configuration – 3.5″ Roller Tube) | 6 |
| 8 | Superseded | Motor Assy, Silver Body (Discontinued – FSO R001853) | |
| 9 | R030886-001 | Drive Gear, Motor (Used with item 8) | |
| 10 | R030885-001 | Crown, Motor (Used with item 8) | |
| 11 | R001853 | Motor Assy, Orange Body | 5 |
| 12 | R041369-001 | Crown, Motor (Used with VS Configuration – 3″ Roller Tube) | 6 |
| 13 | R041336-001 | Crown, Motor (Used with HS Configuration – 3″ Roller Tube) | 6 |
| 14 | R041580-001 | Crown, Motor (Used with HS Configuration – 3.5″ Roller Tube) | 6 |
| 15 | R001992-001 | Drive Adaptor (Used with HS Configuration – 3.5″ Roller Tube) | 6 |
| 15a | See Note 7 See Note 7 |
Roller Tube Upgrade Kit (with fabric) Roller Tube Upgrade Kit (without fabric) |
7 7 |
| 16 | See Note 2 | Top Cover Assy | 2 |
| 17 | R040665-001 | Plug, .375 | |
| 18 | R040665-002 | Plug, .75 | |
| 19 | R030721-001 | Grommet, 5/16 ID | |
| 20 | See Note 2 | Middle Rail | 2 |
| 21 | R040727-106 | Cover, Middle Rail | |
| 22 | See Note 2 | Lead Rail | 2 |
| 23 | R001379 | End Plate, Lead Rail, LH | |
| 24 | R001374 | End Plate, Lead Rail, RH | |
| 25 | R001844 | Ramp Block Kit | |
| 26 | Reference Only | Lead Rail Connector | 4 |
| 27 | R001380 | Spring Arm, 7′, LH | |
| 28 | R001381 | Spring Arm, 7′, RH | |
| 29 | R0141760JV | Knuckle Assy, Middle Rail, Outer LH | |
| 30 | R0141770JV | Knuckle Assy, Middle Rail, Outer RH | |
| 31 | R001382 | Knuckle Assy, Middle Rail, Inner LH | |
| 32 | R001383 | Knuckle Assy, Middle Rail, Inner RH | |
| 33 | R001384 | L-Bracket, Middle Rail Knuckle | |
| 34 | R001609 | Spring Arm, 3′, Outer – 1 ea LH, 1 ea RH | 3 |
| 35 | R001607 | Spring Arm, 3′, Inner, LH | |
| 36 | R001608 | Spring Arm, 3′, Inner, RH | |
| 37 | R001387 | Support Kit, Spring Arm | |
| 38 | 030796-001 | Hex Key, Manual Override (7mm) | |
| 39 | Canopy Replacement | Canopy Only |
Notes: 1: XXX = Color, xx = Length
2: The Top Cover (item 2, Lead Rail (item 15) or the Middle Rail (item 16) are special order parts, contact Carefree customer service.
3: The outer 3′ arms (item 26) are replaced as a pair. Replacement kit includes 1 LH and 1 RH arm assembly.
4: Lead rail connectors (item 18) are shows for reference only. Connectors are part of the lead rail (item 15).
5: Motor assembly (item 10) includes drive and attaching hardware. It does not include the crown.
6: Starting in March, 2019 Carefree uses a 3.5″ aluminum roller tube. Prior units used a 3″ steel roller tube. Confirm the awning configuration and roller tube diameter before ordering parts.
7: A roller tube upgrade kit (item 15a) is available to upgrade existing awnings with the current roller tube configuration. Kit includes roller tube, motor, drive adaptor, crown, end plug and fabric. To order you must specify the product, nominal product length, canopy type and motor install side (LH or RH). Please Have Part Number and/or Serial Number prior to ordering. This is a special order item, please contact Carefree customer service.
