Over-the-Door Awning

+Features

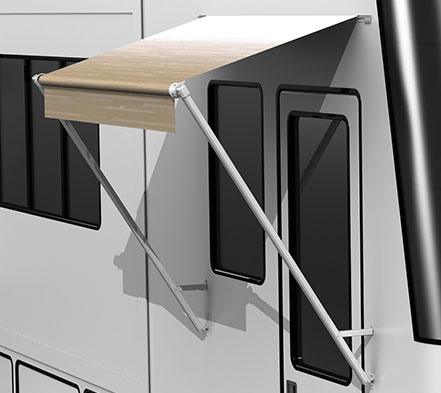

Over-the-Door “OtD” Awnings

Curved and straight arm in vinyl or acrylic. Carefree Over-the-Door awning roller and arms are made from sturdy extruded aluminum and are available in your choice of Satin, White, or Black. Canopies in your choice of vinyl with matching vinyl Weatherguard are offered in all standard vinyl colors, or the OtD LTD features acrylic fabric in all standard or custom acrylic colors with the metal wrap Alumaguard cover.

Curved Arm Model

Created for class A’s with a cab-forward entry and travel trailers with a driver’s side door. The Carefree OtD Awning is for doors not shaded by your patio awning. To keep cool and comfortable, get a Carefree OtD awning to cover your door.

Acrylic LTD with Alumaguard

To set up, simply reach up and extend the OtD with the pull strap – the braces automatically lock into place. Straight or curved arm applications are available.

---

+ Specifications

Over-the-Door “OtD” Awnings

Fabric and Hardware colors: Awning roller and arms are extruded aluminum. Arms are available in your choice of Satin, Polar White or custom colors. Canopies in your choice of vinyl with Weatherguard offered in all standard vinyl colors. The OtD LTD. is available in all standard and custom color acrylic colors.

Measuring/Ordering Guidelines:

All OtD awnings have a standard extension of 36″ and an arm length of 60″. Minimum width measurement is 36″ and an arm length of 60″. Minimum width measurement is 36″, maximum width is 72″. Measurements are from center of bottom bracket to center of bottom bracket. Awning rail must be mounted a minimum of 11″ above the door. You must have a minimum of 2″ mounting width beyond the front and rear of the door and a flat unobstructed vertical mounting area of 63″ between awning rail and bottom bracket. View Carefree’s companion awning fabric options

Metal Wrap Alumaguard Colors

View hardware color swatches

---
