Compass Replacement Parts
Compass
Compass LED

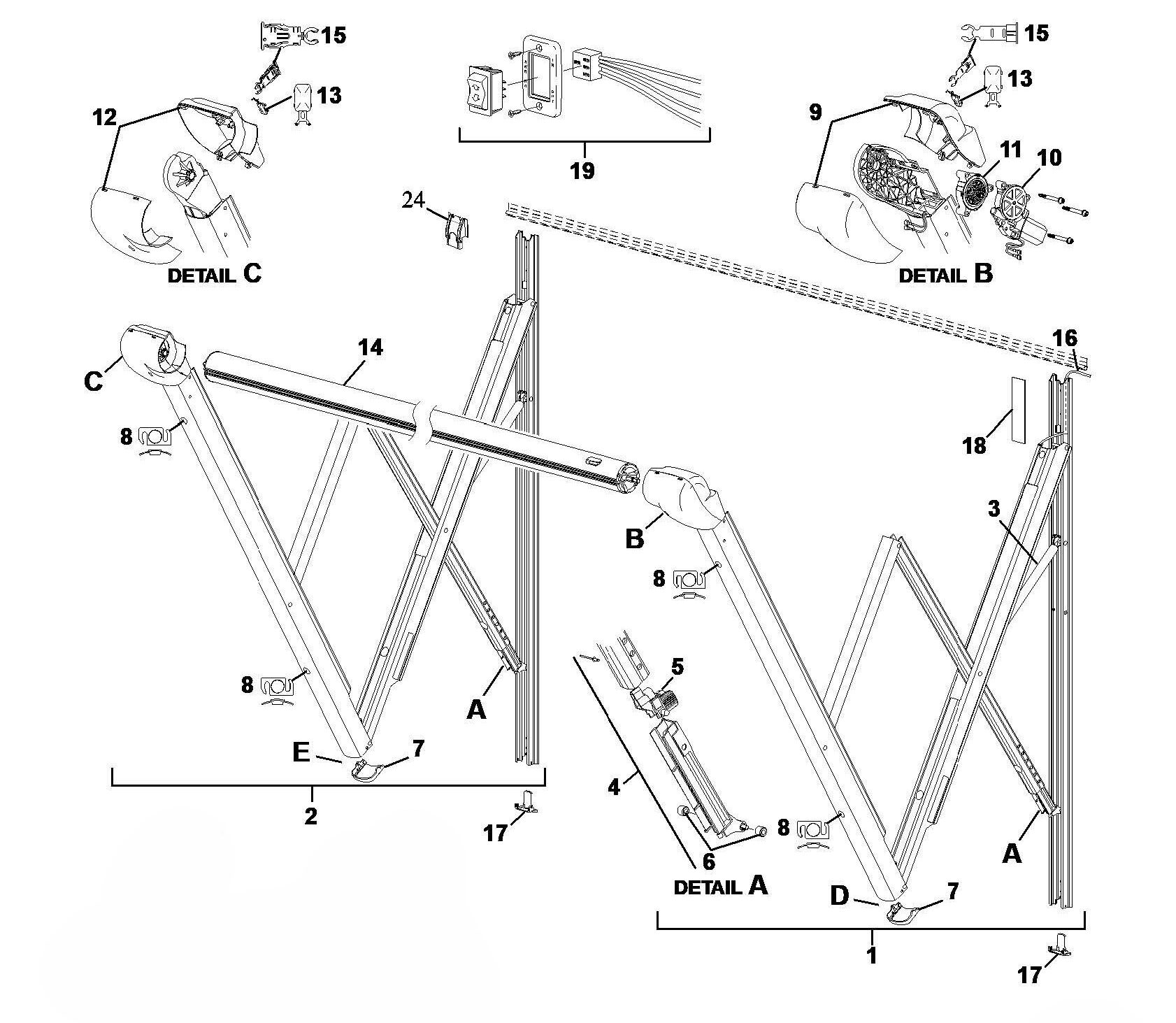

Compass
| Callout # | Part Number | Description | Notes |
|---|---|---|---|
| 1 | R001988— | Arm Assy, Motor Side, RH | Â |
| 2 | R001989— | Arm Assy, Idler Side, LH | Â |
| 3 | R001826 | Gas Shock | Â |
| 4 | R001972-102 | Kit, Pitch Adjust Assy | 1 |
| 5 | R002019-002 | Pitch Adjustment Pins (New style with easy depress cover) | pkg of 2 |
| 6 | R001840 | Kit, Roller Replacement | Â |
| 7 | R002008-006 | Arm End Cap, Bottom (Solid) | Â |
| 8 | R001930-00- | Kit, Hole Plug | pkg of 4 |
| 9 | R001931-00- | Cover Kit, Motor | 2 |
| 10 | R001832 | Motor | Â |
| 11 | R001833 | Gear Box | Â |
| 12 | R001932-00- | Cover Kit, Idler | 2 |
| 13 | R001835-00- | Kit, Clip Hole Cover Cap | Â |
| 14a | R001841—- | Roller Tube Assy, No LED | Â |
| 14b | R001842—- | Roller Tube Assy, w/LED | Â |
| 15 | R001836 | Kit, Retaining Clip | 1 ea LH & RH |
| 16 | R001837 | Power Harness, Motor | Â |
| 17 | 017719-006 | Wire Cover, Lower | pkg of 2 |
| 18 | R041331-006 | Wire Cover, Upper | Â |
| 19 | R019487-003 | Switch Kit, Awning | 3 |
| 20 | R041651-001 | Longitude Replacement Spacer | 4 |
| Notes | 00X = Color; 005 = White; 006 = Black. xxx = Length in inches. 1. Includes items 5,6 and rivet. 2. Head cover kits include one front cover and one rear cover. 3. Switch kit includes switch, faceplate, screws and connector. 4. Used when replacing Longitude arms. |
Compass LED
| Callout # | Part Number | Description |
|---|---|---|
| 1 | R060850-00- | LED Strip: Choose Long or Short |
| 2 | SR0101 | LED switch kit |
| 3 | R019493-001 | Kit, fuseholder with fuse, 2A |
| 4 | R060718-001 | LED Power Cable, 22 feet |
| 5 | R001716 | Roller tube slot cover (Black) 24″ |
