Sunshade Replacement Parts
Sunshade
Sunshade

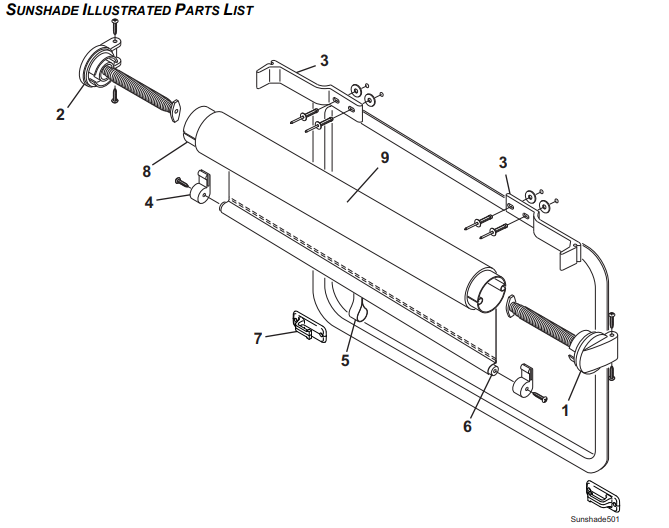

| Item # | Part Number | Description | Additional Information | Notes |
|---|---|---|---|---|
| 1 | R00451XXX R00452XXX R00453XXX |
Springs-Right Springs-Right Springs-Right |
3′-3’11” 4′-4’11” 5′-17′ |
2 2 2 |
2 | R00448XXX R00449XXX R00450XXX |
Springs-Left Springs-Left Springs-Left |
3′-3’11” 4′-4’11” 5′-17′ |
2 2 2 |
3 | R00474XXX | Top Mounting Bracket | 2 | 4 | R00476 | Lead Rail Hook | qty 1 | 5 | R00475 | Pull Loop | 6 | R00477-xxx | Lead Rail Assembly | 1 | 7 | 901044 901044W |
Bottom Catch – Black Bottom Catch – White |
2 per pkg 2 per pkg |
8 | 610300-xxx.xx | Roller Tube | 9 | Canopy Replacement | Fabric Only |
| The following parts are not displayed in the diagram above. | ∞ ∞ |
R016215-005 R016215-006 |
Hardware Pack Hardware Pack |
White Black |
Notes: 1: xxx = Length in inches
2: XXX = Color
