SL Window Awning Replacement Parts

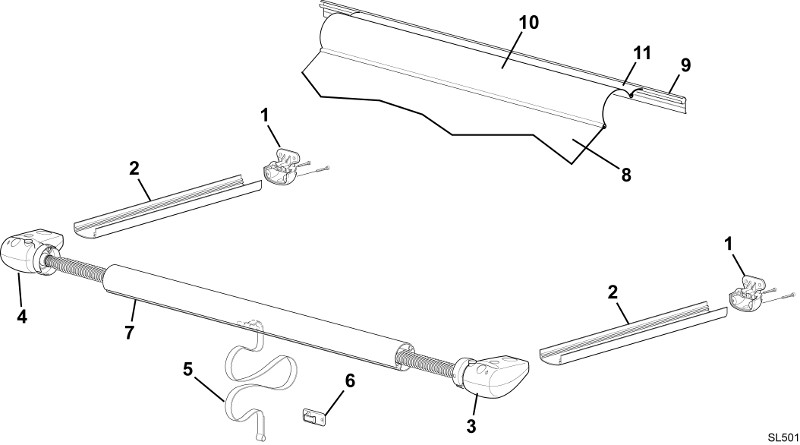

| Item # | Part Number | Description | Additional Information | Notes |
|---|---|---|---|---|
| 1 | R001181XXX | Bracket, Arm Mount | 1 | |
| 2 | R038124-xxXXX | Arm | 1 | |
| 3 | R001182XXX R001184XXX R001172XXX |
Head and Spring Assembly, RH Head and Spring Assembly, RH Head and Spring Assembly, RH |
All: 03′ – 08′ Standard: 8’1″ – 13′ XL: 8’1″ – 12′ Standard: 13’1″ – 15′ XL: 12’1″ – 13′ |
1,2 1,2 1,2 1,2 1,2 |
| 4 | R001923 R001924 R001183XXX R001185XXX R001171XXX |
Head Assy, No Spring, LH, Black Head Assy, No Spring, LH, White Head and Spring Assembly, LH Head and Spring Assembly, LH Head and Spring Assembly, LH |
2’6″ – 2’11” 2’6″ – 2’11” All: 3′-8′ Standard: 8’1″ – 13′ XL: 8’1″ – 12′ Standard: 13’1″ – 15′ XL: 12’1″ – 13′ |
1,2 1,2 1,2 1,2 1,2 |
| 5 | R022406—- | Pull Strap | Available in both 28″ & 43″. | |
| 6 | 901044- | Pull Strap Catch | ||
| 7 | 610300—-.5 | Roller Tube | ||
| 8 | Canopy Information | Canopy | ||
| 9 | 610700xxx | Awning Rail | ||
| 10 | R001202XXX-xxx | Uniguard with Soft Connect | ||
| 11 | R001248——- | Soft Connect (only) | ||
| The following parts are not displayed in the diagram above. | ||||
| 12 | R019774-0– | Hardware Pack | ||
Notes: 1. XXX = Color; xxx = Length
2. Spring assemblies (items 3, 4) are available in WHT (white) for white arms, BLK (black) for all
other colors.
