Freedom Freestyle Roof Mount Replacement Parts

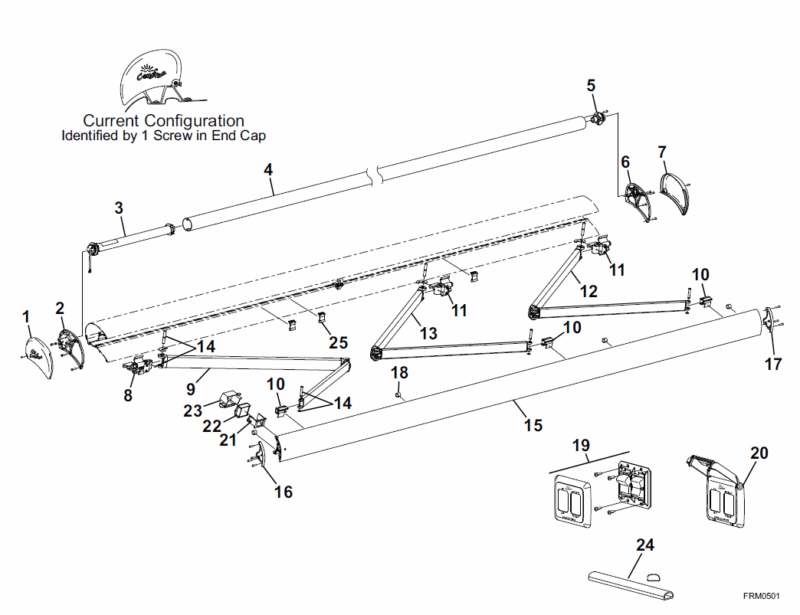

Freestyle RM Current
Freestyle RM Original
Freestyle RM Current
| Callout # | Part Number | Description | Notes |
|---|---|---|---|
| 1 | R037519—– | Left Hand Endcap | |
| 2 | R037517-001 | Left Hand Case Endplate | |
| 3 | R001862 | Motor Assembly | 3 |
| 4 | 610900——- | Roller Tube | |
| 5 | R001623 | End Plug | |
| 6 | R037516-001 | Right Hand Case Endplate | |
| 7 | R037518—– | Right Hand Endcap Assembly | |
| 8 | R019280-003 | Left Hand Connector Assembly, Case | 2 |
| 9 | R012530-TB–L | Left Hand Spring Arm | 2,7 |
| 10 | R00187- | Lead Rail Connector Kit | |
| 11 | R019280-004 | Right Hand Connector Assembly, Case | 2 |
| 12 | R012530-TB–R | Right Hand Spring Arm | 2,7 |
| 13 | R012530-TB–M | Right Hand Spring Arm (Center) | 2,6,7 |
| 14 | R001595 | Hardware Pack, Arm Attach, 1 Arm | |
| 15 | R002014——– | Lead Rail | 4 |
| 16 | R041353—- | Left Hand Lead Rail End Plate | |
| 17 | R041352—- | Right Hand Lead Rail End Plate | |
| 18 | R001691 | Lead Rail Guide Kit | |
| 19 | R019468-006 | Switch Kit | |
| 20 | SR0115 | Covered Bezel Kit | |
| 21 | R001679-1 | Sensor Bracket Kit | |
| 22 | R060686-004 | Sensor/Control Module | |
| 23 | R041365-001 | Module Cover | |
| 24 | R040616-206 | Cable Channel | |
| 25 | R001970 | Arm Bumper | |
| The following parts are not displayed in the diagram above. | |||
| 26 | R060701-00- | Sensor Harness | 5 |
NOTES
1. XXX = Color: 001 = Mill; 005 = White; 006 = Black; 231 = Satin; 0JP = Tan; 0JQ = Taupe;0JR1 = MBWht; 0JS1 = MBBlk; 0JU1 = MBSil
2. Attaching hardware not included with arm assemblies. Order item 14.
3. Motor assembly (item 3) includes motor, bearing and one-way drive. Components not available separately.
4. For item 15 (lead rail): XX = Color; () = LED; L – w/LED, X = No LED; xxx = product order length.
5. harness (item 26) includes integrated LED harness.
6. The middle spring arm is different than the outer arms. Center arms can be identified by the blue dot located on or near the case connector of the arm. Do not use center arms for replacing outer arms, do not use outer arm to replace the center arm.
7. Style code JN uses arms items 9c, 12c for all sizes 2.5 meters and up and center arm item 13a for 4.5 and 5 meter.

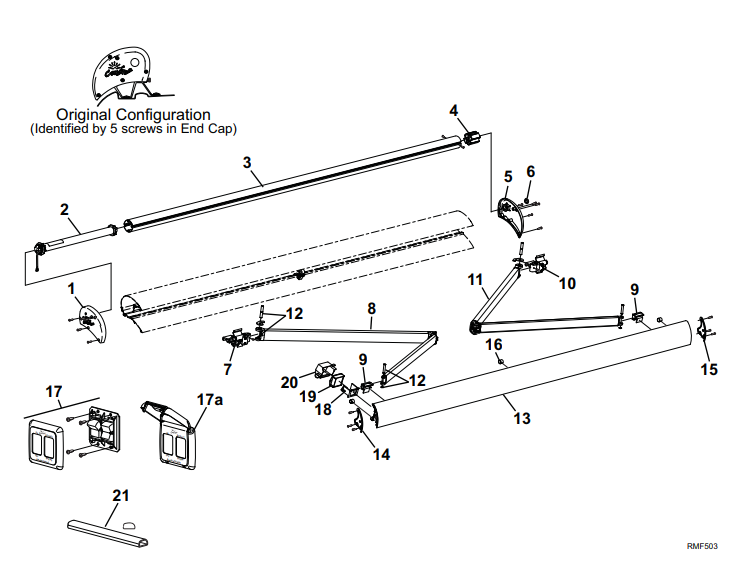

Freestyle RM Original
| Callout # | Part Number | Description | Notes |
|---|---|---|---|
| 1 | R037382-XXX | Endcap, LH | |
| 2 | R001862 | Motor Assembly | 2 |
| 3 | 610900-xxx.xx | Roller Tube | |
| 4 | R035383-001 | End Plug | |
| 5 | R001594XXX | Endcap Assy, RH | |
| 6 | R040xxx-00X | Plug | |
| 7 | R019280-003 | Connector Assy, Case, LH | 1 |
| 8 | R012530-TBxxL | Spring Arm Assy, LH | 1 |
| 9 | R001872 | Connector Kit, Lead Rail (includes 1 LH and 1 RH connector) | |
| 10 | R019280-004 | Connector Assy, Case RH | 1 |
| 11 | R012530-TBxxR | Spring Arm Assy, RH | 1 |
| 12 | R001595 | Hardware Pack, Arm Attach, 1 Arm | |
| 13 | R001819X-aa-xxx | Lead Rail | 3 |
| 14 | R040981-XXX | Lead Rail End Plate, LH | |
| 15 | R040981-XXX | Lead Rail End Plate, RH | |
| 16 | R001691 | Lead Rail Guide Kit (pkg of 4) | |
| 17 | R019468-006 | Switch Kit | |
| 17a | SR0115 | Covered Bezel Kit (Optional) | |
| 18 | R001679-1 | Sensor Bracket Kit, RM | |
| 19 | R060686-004 | Sensor/Control Module | |
| 20 | R041365-001 | Module Cover | |
| 21 | R040616-206 | Cable Channel (43″) | |
| The following parts are not displayed in the diagram above. | |||
| 22 | R060686-003 R060686-004 |
Harness, Sensor Harness, Sensor, used w/ 8′ only |
|
NOTES
1. Attaching hardware not included with arm assemblies. Order item 12.
2. Motor assy (item 2) includes motor, bearing and one-way drive. Components not available separately.
3. For item 132 (lead rail); X= Color; B=Black, W=White, S=Satin; aa = LED: LI=LED, XX=No LED; xxx=product order length.
4. Harness (item 22) includes integrated LED harness.
