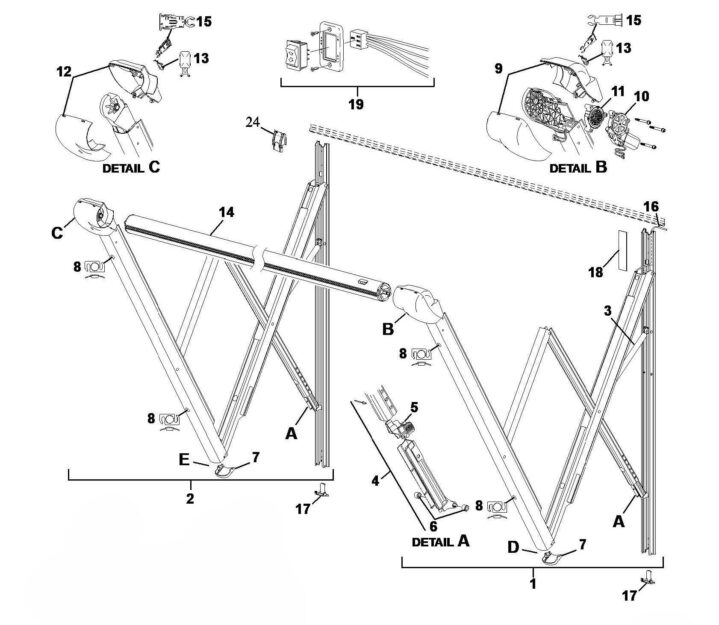

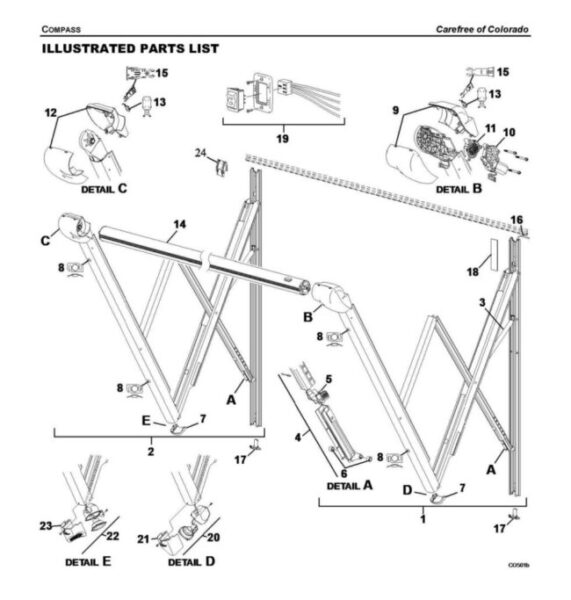

Compass Replacement Parts
Compass
Compass LED
Compass
| Item # | Part Number | Description | Additional Information | Notes |
|---|---|---|---|---|
| ∞ | TAxxAPHW | Arm Set, Complete | ||
| 1 | R001988XXX | Arm Assy, Motor Side, RH | ||
| 2 | R001989XXX | Arm Assy, Motor Side, LH | ||
| 3 | R001826 | Gas Shock | ||
| 4 | R001972-102 | Kit, Pitch Adjust Assy | Includes items 5, 6 and rivet | 1 |
| 5 | R002019-002 | Pitch Adjustment Pins | pkg of 2: New style with easy depress cover | |
| 6 | R001840 | Kit, Roller Replacement | ||
| 7 | R002008-006 | Arm End Cap, Bottom (Solid) | ||
| 8 | R001930-00X | Kit, Hole Plug | pkg of 4 | |
| 9 | R001931-00X | Cover Kit, Motor | 2 | |
| 10 | R001832 | Motor | ||
| 11 | R001833 | Gear Box | ||
| 12 | R001932-00X | Cover Kit, Idler | 2 | |
| 13 | R001835-00X | Kit, Clip Hole Cover Cap | ||
| 14a | R001841-xxx | Roller Tube Assy, No LED | ||
| 14b | R001842-xxx | Roller Tube Assy, w/LED | ||
| 15 | R001836 | Kit, Retaining Clip | 1 ea LH & RH | |
| 16 | R001837 | Power Harness, Motor | ||
| 17 | 017719-006 | Wire Cover, Lower | pkg of 2 | |
| 18 | R041331-006 | Wire Cover, Upper | ||
| 19 | R019487-003 | Switch Kit, Awning | 3 | |
| 20 | R041651-001 | Longitude Replacement Spacer | 4 |
Notes:
1. XXX = Color: WHT = White; BLK = Black: 00X = Color: 005 = White; 006 = Black: xxx = Length in inches
2. Head cover kits include one front cover and one rear cover.
3. Switch kit includes switch, faceplate, screws and connector.
4. Used when replacing Longitude arms.
Compass LED
| Callout # | Part Number | Description |
|---|---|---|
| 1 | R060850-00- | LED Strip: Choose Long or Short |
| 2 | SR0101 | LED switch kit |
| 3 | R019493-001 | Kit, fuseholder with fuse, 2A |
| 4 | R060718-001 | LED Power Cable, 22 feet |
| 5 | R001716 | Roller tube slot cover (Black) 24″ |
