Apex DS Replacement Parts
Apex Dual-Stage
Apex Dual-Stage

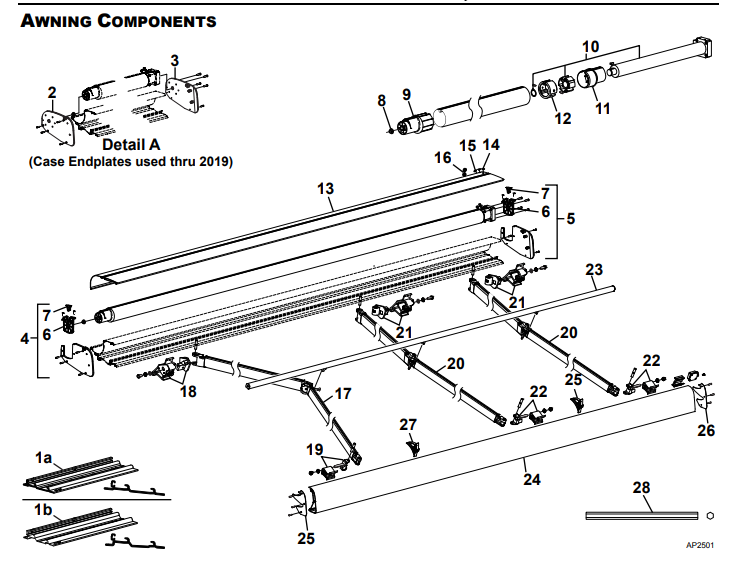

| Callout # | Part Number | Description | Notes |
|---|---|---|---|
| 1a 1b |
GJ0001 GJ0002 |
Mounting Plate, 0 degree (used on roofs with a pitch greater than 3 degrees) Mounting Plate, 3 degree (used on roofs with a pitch from 0 degrees to 3 degrees) |
|
| 2 | R001994 | Endplate Assy, LH, Flat | |
| 3 | R001995 | Endplate Assy, RH, Flat | |
| 4 | R001996 | Endplate, Assy, LH, Drop-In | 2 |
| 5 | R001997 | Endplate Assy, RH, Drop-In | 2 |
| 6 | R001998 | Motor Mount Plate, Drop In | |
| 7 | R001999 | Canopy Access Plug | |
| 8 | R035310-002 | Bushing, Idler | |
| 9 | R041581-001 | End Plug, Idler (3.5″ Roller Tube) | |
| 10 | R001853 | Motor Assy, Orange Body | 3 |
| 11 | R041580-001 | Crown, Motor (3.5″ Roller Tube) | |
| 12 | R001992-001 | Drive Adaptor (3.5″ Roller Tube) | |
| 13 | See Note 5 | Top Cover | |
| 14 | R040665-001 | Plug, .375 | |
| 15 | R040665-002 | Plug, .75 | |
| 16 | R030721-001 | Grommet, 5/16 ID | |
| 17 | R012598-XXL115 | Spring Arm Assy, LH | |
| 18 | R002000 | Knuckle, LH, Spring Arm | |
| 19 | R002002 | Connector, LH, Lead Rail | |
| 20 | R012598-XXR115 | Spring Arm Assy, RH and Center | 4 |
| 21 | R002001 | Knuckle, RH, Spring Arm | |
| 22 | R002003 | Connector, RH, Lead Rail | |
| 23 | See Note 5 | Middle Rail Assy | |
| 24 | See Note 5 | Lead Rail | |
| 25 | R001379 | Endplate, Lead Rail, LH | |
| 26 | R001374 | Endplate, Lead Rail, RH | |
| 27 | R002004 | Midrail Ramp Kit | |
| 28 | R030796-001 | Hex Key, Manual Override (7mm) | |
| 29 | Canopy Replacement |
NOTES
1. XXX = Color, xxx = Length in inches
2. Endplates (items 4, 5) includes items 6 and 7.
3. Motor assembly (item 10) includes drive and attaching hardware. It does not include crown (item 11) or drive adaptor (item 12).
4. Center arm is used on units 18′ and longer.
5. The Top Cover (item 13), Middle Rail (item 23) and Lead Rail (item 24) are special order parts, contact Carefree customer service.
