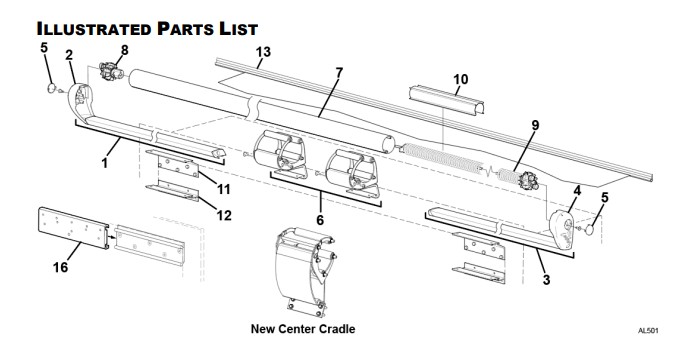

| Item # | Part Number | Description | Additional Information | Notes |
|---|---|---|---|---|
| 1 | See Note 3 R001905XXX R001958XXX |
Endcap and Mounting Tube Assy, LH Endcap and Mounting Tube Assy, LH Endcap and Mounting Tube Assy, LH |
42″-204″ 205″-336″ 337″ (Only available in Black) |
3 |
| 2 | R001903XXX | Endcap, LH | ||
| 3 | See Note 3 R001906XXX R001959XXX |
Endcap and Mounting Tube Assy, RH Endcap and Mounting Tube Assy, RH Endcap and Mounting Tube Assy, RH |
42″-204″ 205″-336″ 337″ (Only available in Black) |
3 |
| 4 | R001904XXX | Endcap, RH | ||
| 5 | R001902XXX | Plug | Pkg of 2 | |
| 6 | SG0027-WHT SG0027-BLK SG0031-WHT SG0031-BLK |
Cradle, Roller Support, White Cradle, Roller Support, Black Cradle, Roller Support, White (NLA) Cradle, Roller Support, Black |
(Original Style) Pkg of 2 (Original Style) Pkg of 2 (Current Style) Pkg of 2 (Current Style) Pkg of 2 |
5 |
| 7 | 610900—- | Roller Tube | ||
| 8 | R012019-001 R012019-002 |
Spindle Assy, LH Spindle Assy, LH |
Standard XL |
|
| 9a | R002054-001 R002054-002 |
Spring Assembly (Dual Springs) Spring Assembly (Dual Springs) |
<119" 120″-192″ |
4 | 9b | R001859XL | Spring Assembly XL | >193″ |
| 10 | R041481-001 | Spring Sleeve (for single slot roller tube) | ||
| 11 | R012546-505 | Bracket, Mounting Kit, Tall | Black is NLA | 2 |
| 12 | R012545-50X | Bracket, Mounting Kit, Short | Available in Black & White | 2 |
| 13 | 610700xxx | Awning Rail | ||
| 16 | BX0013-2-XXX | Carefree Slide Topper Prepped Access Plate Adapter Kit | Not available for purchase directly. Please contact a dealer or repair shop | |
| The following parts are not displayed in the diagram above. | ||||
| 14 | R001925—- | Hardware Pack, Standard | ||
| 15 | R001926—- | Hardware Pack, XL | ||
NOTES
1: xxx = Length in inches, XXX = Color, WHT = White, BLK = Black
2: Bracket kits (items 11 & 12) contain 2 brackets and attaching hardware. Awnings for box lengths 205″ or longer requires 2 kits.
3: For Endcap and Mounting Tube replacements for standard length awnings, order complete arm kit:
KG25S15 – White with short bracket. KG25T15 – White with tall bracket.
KGJVS15 – Black with short bracket. KGJVT15 – Black with tall bracket.

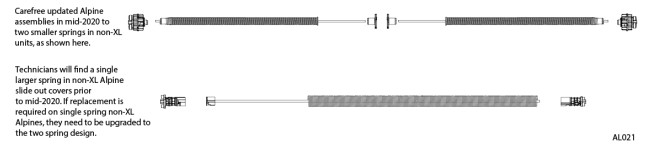

4: Alpines under 192″ now use a dual spring system.
5: Cradles changed in mid 2025. The Original Style (#6) attaches to the Mounting Tubes (#1 & 3). The Current Style (Not Pictured) attaches to the awning rail #13).
