Freedom Wall Mount Box Awning
Sleek, Easy to Operate

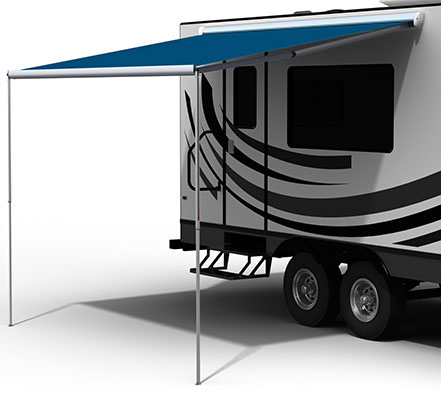

The Freedom Wall Mount Awning is a box awning that mounts to the side of your truck camper or RV. It opens and the arms unfold as you turn the hand crank or push a button (12 volt models only). The support arms fold out of the lead bar once it’s at eye level and within easy reach. The support arms adjust easily with flip lock controls. To close, just fold the support arms up into the lead rail and crank in the opposite direction – or simply push a button on the motorized awning; the awning case closes and locks automatically. The 12V model includes a manual override if power is lost.
Configure Product Replacement Parts Replace Canopy
+ Manuals
052573 Freedom WM Installation Manual Bracket Kit Mercedes Vito Freedom WM Motor Replacement Bracket Kit Renault Master Bracket Kit Ducato, Jumper, Boxer Bracket Kit Ducato 2006 Freedom WM Motor Upgrade Freedom WM Owners Manual Freedom WM with BT12 Owners Manual Freedom Wall Mount Illustrated Parts List Freedom WM Service Manual Freedom WMNL Owners Manual+Features
Packaged Product Includes
Freedom awning, 2-3 mounting brackets, 2 bottom brackets for support legs, carriage and Lag bolts, small backing plates and covers, all electronics and installation/owner’s manual.
+ Specifications
Operation: Manual Crank or 12V push button
Length: 2.5 – 5.0 meters in half meter increments (endcap to endcap)
2.5m (8’5″)
3.0m (9’10”)
3.5m (11’6″)
4.0m (13’1″)
4.5m (14’9″)
5.0m (16’5″)
Height: 5.7″
Depth: 3.6″
Weight: 2.5m = approx. 50 lbs….. 5.0m = approx. 90 lbs.
Canopy Width: Actual fabric measures 7″ shorter than awning length end cap to end cap.
Canopy max extension: 2.5m = 6.5′, all other sizes = 8′
Lead Rail Drop at max extension: 12″ – 36″ (adjustable)
Case color: Satin, White or Black
Fabric: Vinyl or Acrylic
Mounting Requirements
Flat unobstructed surface, over sufficient structural framing, running length of awning size (existing awning rail or coach frame).
Power Requirements
12V, 15A
Packaged Product Includes
Freedom awning, carriage and lag bolts, small backing plates and covers, all electronics and installation/owner’s manual. Includes flat mounting plates, several optional adapter kits are sold separately.
Fabric Options
Available with acrylic or vinyl canopy.
View Carefree’s patio awning fabric options
Case Options
Available in standard case colors: white, black, and satin.
