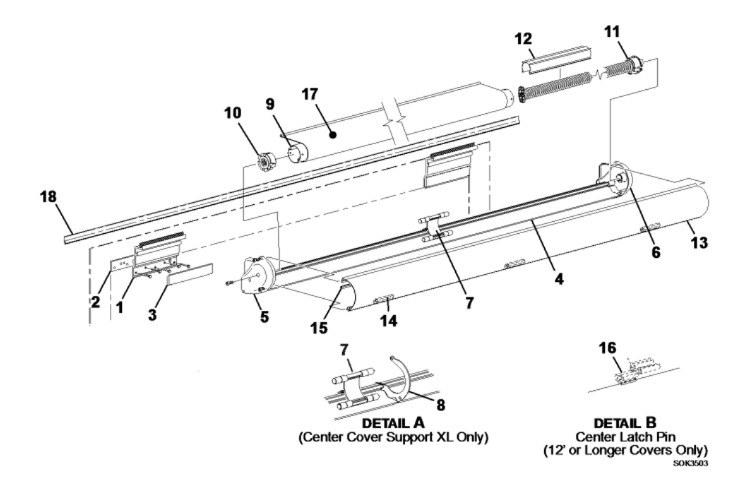

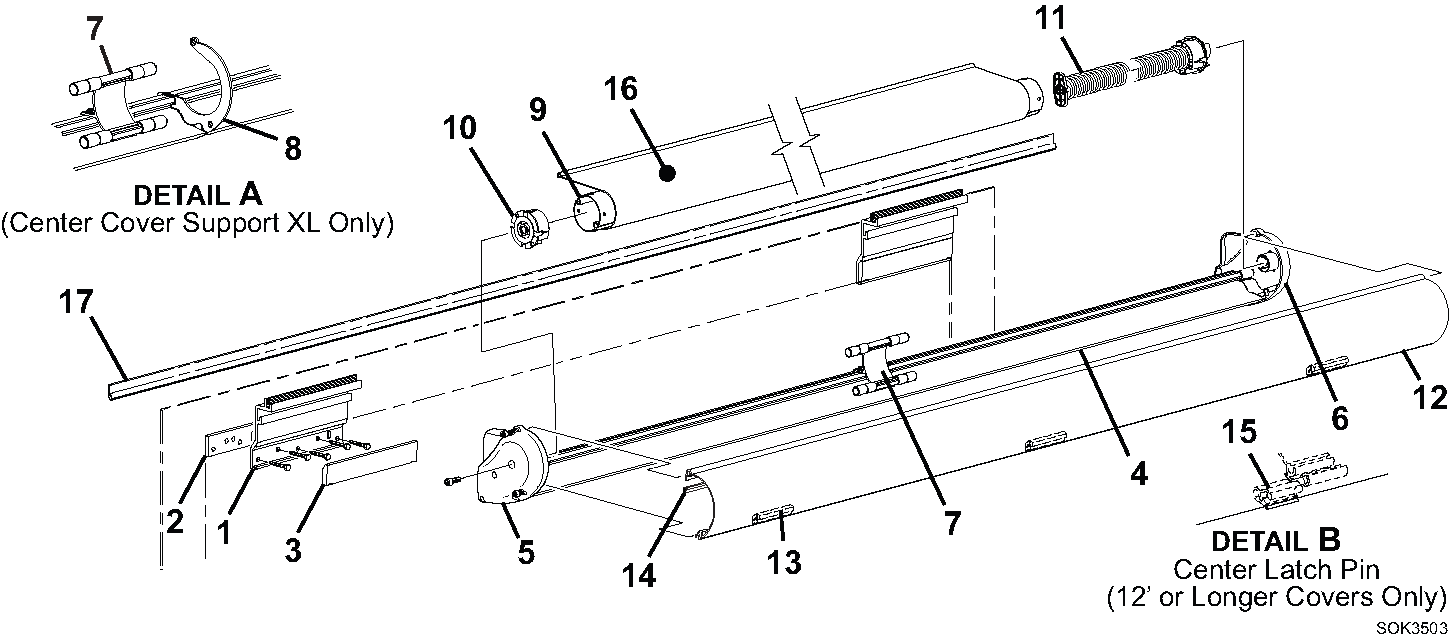

SideOut Kover III Replacement Parts

Item #	Part Number	Description	Additional Information	Notes
1	R001150XXX	Bracket, Deflector Mount, Short (4.5″)	4.5″	6
2	R001534	Spacer, 1/4″, Deflector Bracket
3	R001151XXX	Cover, Deflector Mount Bracket
4	R001———–	Deflector Assembly
5	R001520XXX	End Cap, LH	Screw Cover Attach
6	R001521XXX	End Cap, RH	Screw Cover Attach
7	R001156	Roller Support		7
8	R001258	Center Support Plate	includes cover attach pins / XL Only
9	610400-xxx 33XXX	Roller Tube Roller Tube	XL
10	R001164	Idler Bearing, Roller Tube, LH
11	R001165 R001165XL	Spring Assembly Spring Assembly	XL
12	R041481-001	Spring Sleeve, used with single slot roller tube
13	R001169XXX-xxx R001337XXX-xxx	Front Cover Assy Front Cover Assy	XL	5 3,5
14	R001562	Bumper Guard
15	R001562	Bumper, Front Cover	Pkg of 4, (24″)	4
16	R001186	Center Latch Pin	used on 12′ or longer covers only
17	Canopy Replacement	Canopy Only		4
18	0157xxx	Awning Rail		4
The following parts are not displayed in the diagram above.
20	BX0013-2-XXX	Carefree Slide Topper Prepped Acccess PLate Adapter Kit	pkg of 2 (See Dealer)
19	R012711-00X	Hardware Pack

Notes: 1: XXX = Color; xxx = Length in Inches 2: The XL replacement Roller Tube Assy includes the roller tube halves, splice, rivets, end caps and pre-wound spring. 3: XL replacement cover includes both the LH and RH halves. 4: Set of four bumper guards (item 14) is included with canopy replacements. 5: Replacement covers mount with screws. If replacing an older cover that uses spring pins, it will be necessary to also order end caps (items 5,6). 6: Units 155″ or less (order length) uses 2 brackets. Units 156″-191″ uses 3 brackets. XL units 283″ or longer uses a quantity of 5 brackets. 7: Center support (item 7) is no longer used on units 10 feet or less.
