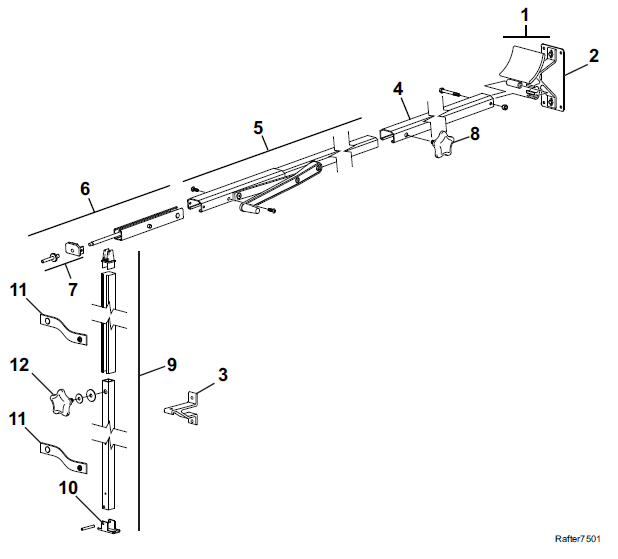

| Item # |
Part Number |
Description |
Additional Information |
Notes |
| 1 |
R00483— |
Cradle with Bracket |
Available in Black or White |
|
| 2 |
R00132- |
Backing Plate |
Available in Black or White |
|
| 3 |
R00711— |
Bottom Bracket |
Available in Black or White |
|
| 4 |
R00871— |
Rafter Outer Arm |
Available in Black or White |
|
| 5 |
R00872— |
Rafter Inner Arm, w/ Linkage |
Available in Satin or White |
|
| 6 |
R00869— |
Front End Mounting Assembly |
Available in Satin or White |
|
| 7 |
R001574 |
Tip, Front End Mounting Assembly |
|
|
| 8 |
R00708 |
Knob, Black with washers |
|
|
| 9 |
90231—- |
Ground Support Assembly |
Available in Satin or White |
|
| 10 |
R00394 |
Carport Foot |
|
|
| 11 |
R00721 |
Strap Assembly w/ snaps |
|
|
| 12 |
R00708 |
Black Knob |
|
|
| The following parts are not displayed in the diagram above. |
| 13 |
R001086— |
Hardware Pack |
Available in Black or White |
|
