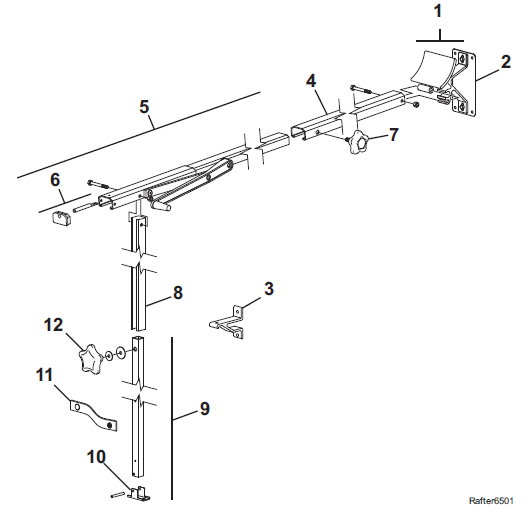

| Item # |
Part Number |
Description |
Additional Information |
Notes |
| 1 |
R00483— |
Cradle with Bracket |
Available in Black or White |
|
| 2 |
R00132- |
Backing Plate |
Available in Black or White |
|
| 3 |
R00711— |
Bottom Bracket |
Available in Black or White |
|
| 4 |
R00123- |
Rafter Outer Arm 50″ |
Available in Satin or White |
|
| 5 |
R007– |
Rafter Inner Arm, 57″, w/ Linkage |
Available in Satin or White |
|
| 6 |
R00457 |
Roller Pin End |
|
|
| 7 |
R00486 |
Knob, Black with Nutsert |
|
|
| 8 |
R0070- |
Ground Support Outer Arm, 49 1/2″ |
Available in Satin or White |
|
| 9 |
R0070- |
Ground Support Inner Arm, 58″ |
Available in Satin or White |
|
| 10 |
R00394 |
Carport Foot |
|
|
| 11 |
R00721 |
Strap Assembly with snaps |
|
|
| 12 |
R00708 |
Knob, Black with washers |
|
|
| The following parts are not displayed in the diagram above. |
| 13a |
R00717— |
Hardware Pack |
Available in Black or White |
|
| 13b |
R019557XXX |
Hardware Pack with Ground Support |
Available in Black or White |
|
