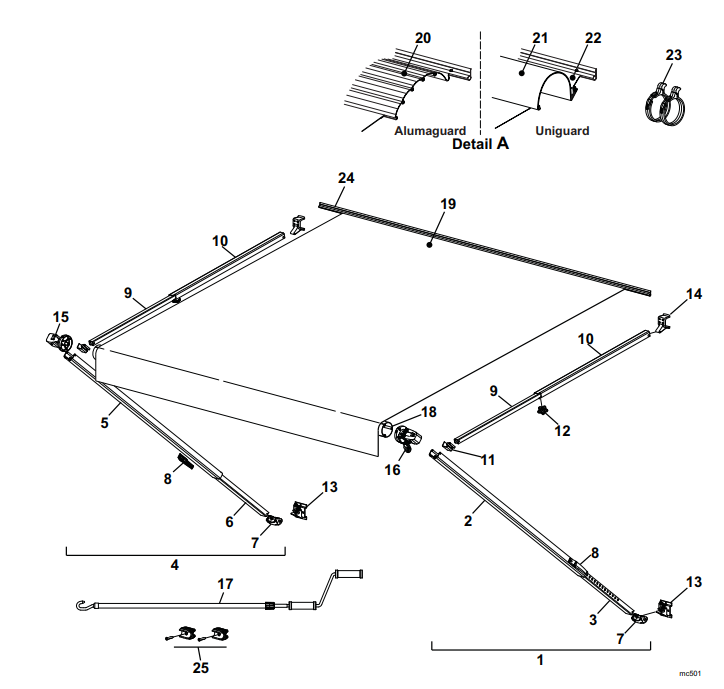

| Item # | Part Number | Description | Notes |
|---|---|---|---|
| 1 | R00415-5nn-XX | 1/2 Set Hardware (Right) | 1,2,4 |
| 2 | R00410-5nn-XX | Upper Main Arm (Right) | 1,2 |
| 3 | R001963-5nn-XX | Lower Main Arm (includes Item 7) (Right) | 1,2 |
| 4 | R00416-5nn-XX | 1/2 Set Hardware (Left) | 1,2,4 |
| 5 | R00411-5nn-XX | Upper Main Arm (Left) | 1,2 |
| 6 | R001964-5nn-XX | Lower Main Arm (Includes Item 7) | |
| 7 | 901020 902020W |
Carport Foot, Black Carport Foot, White |
|
| 8 | 901015 901015W |
Handle, Black Handle, White |
|
| 9 | R00414-5nn-XX | Lower Brace | 1,2 |
| 10 | R00413-5nn-XX | Upper Brace | 1,2 |
| 11 | R00405 | Brace Slider | |
| 12 | 901022 | Locking Knob | |
| 13 | 901019 901019W |
Bottom Bracket, Black Bottom Bracket, White |
|
| 14 | 901018 901018W |
Top Bracket, Black Top Bracket, White |
|
| 15 | R098226-006 R098226-005 |
Idler End Cap, Black Idler End Cap, White |
|
| 16 | R001664XXX | Manual Crank Assy | |
| 17 | R001546-RP | Manual Crank Handle | |
| 18 | 19xx00 | Roller Tube, 4 slot (3.5″ Diameter) | |
| 19 | Canopy Replacement | Fabric Only | |
| 20 | 20xx36XXX | Alumaguard Assembly Only | |
| 21 | R001246XXX-xxx | Uniguard (includes 4.25″ soft connect) | |
| 22 | R001247XXX-xxx | Soft Connect (4.25″ Wide) | |
| 23 | 901067 R001008 |
Tractioner Kit (pkg of 2) O-Ring, Tractioner Retainer (pkg of 2) |
|
| 24 | Awning Rail | ||
| 25 | 901072 | Crank Handle Clip (qty: 2) | |

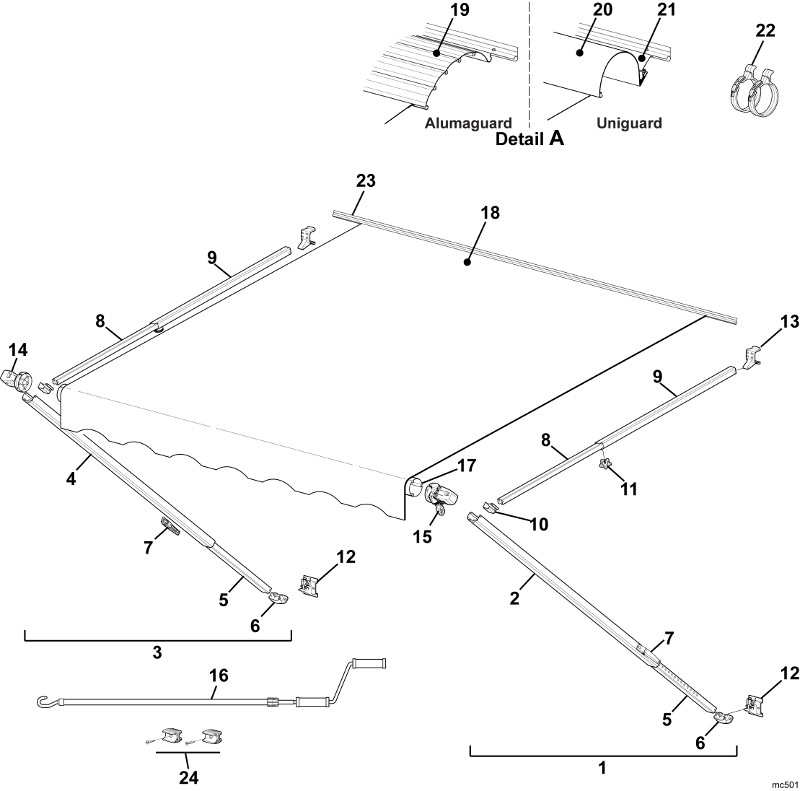

| The following parts are not displayed in the diagram above. | |||
| 26 | R012479-006 R012479-006 |
Hardware Pack, Black Castings Hardware Pack, White Arms w/ White Castings |
|
| 27 | 030573 | Slider Set Screw | |
| 28 | 850001BLK 850001 |
Upgrade Kit for Spirit/Fiesta/Simplicity (Black) Upgrade Kit for Spirit/Fiesta/Simplicity (White) |
3 |
Notes: 1:XX = Color; -06 = Satin w/ Black Castings; -66 = Black w/ Black Castings; -55 = White w/ White Castings.
2: nn = Arm Style
3: Upgrade kit (850001) inclues idler assy (item 15), crank assy (item 16) and screws. Crank Handle (item 17) is sold separately.
4: Replacement arm set does not include crank assy (item 16) or idler assy (item 15)
Pioneer LED
| Callout # | Part Number | Description | Notes |
|---|---|---|---|
| 1 | R060746-001 | LED, 8mm x 5m, 30LPM, 8″ lead 16′ | |
| 2 | SR0101 | Kit,LED switch | |
| 3 | R019493-001 | Kit, fuseholder with fuse, 2A | |
| 4 | R060718-001 | LED Power Cable, 22 feet | |
| 5 | R001716 | Slot cover, two 1′ pieces |
