Marquee Over the Door and Window Awning Replacement Parts

Callout #	Part Number	Description	Notes
1	R001660XXX	End Cap LH
2	R001661XXX	End Cap RH
3	R040792-00X	End Plug, Manual Override
4	R001651	Motor Kit	2
5	610400-xxx.57	Roller Tube
6	R001623	Roller Tube End Plug, RH
7	R019853-001	Connector Assembly, Case
8	R019799-001	Connector Assembly, Lead Rail
9	R001630	Hardware Pack, Arm Attach, 1 Arm
10	R012530-TB32L	Spring Arm Assembly, LH	3
11	R012530-TB32R	Spring Arm Assembly, RH	3
12	R001725-00X	End Plate Kit	2,5
13	R001362XXX-xxx	Lead Rail	6
14	610700-xxxXX	Awning Rail
15	Canopy Information	Canopy
16	R001605	Switch Kit
17	901075	Manual Override Key

Notes:
1: XXX = Color; xxx = Length. WHT = White; BLK = Black
2: 00X = 005 for White; 006 for Black
3: Motor Kit includes bearing and one-way drive. 4: Attaching hardware not included with spring arm assemblies. Order item . Item 9 includes pins, set screw and retaining ring.
5: End plate kit (*item 12) includes two end plates and hardware. End plates are universal and may be used on the left or right side. 6: Lead rail (item 13) includes end plate kit (item 12).

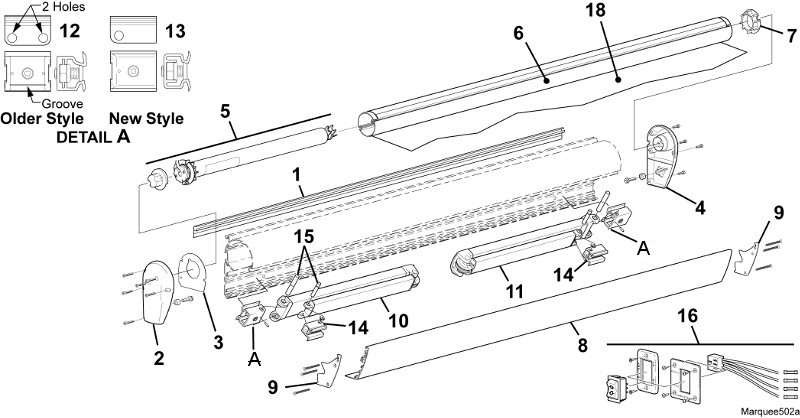

Item	Part Number	Description	Notes
1	610700-xxxXXX	Awning Rail
2	R037318-005	End Cap, LH, White Only (No Longer Available)	2
3	R054017-001	Wall, Closeout (No Longer Available)
4	R037319-00X	End Cap, RH (No Longer Available)	2
5	R001531	Motor Kit
6	Roller Tube	Roller Tube
7	R040751-001	Bearing, Roller Tube, RH
8	R001781XXX-xxx	Lead Rail	7
9	R001725-006	End Plate Kit (Only available in Black, White NLA)	6
10	R012530-TB32L	Spring Arm Assembly, LH	5
11	R012530-TB32R	Spring Arm Assy, RH	5
12	R019804-001 R019804-002	Connector Assembly, Case (Window) (No Longer Available) Connector Assembly, Case (OTD) (No Longer Available)	3
13	R019853-001	Connector Assy, Case (Window and OTD)	3
14	R019799-001	Connector Assy, Lead Rail
15	R001630	Hardware Pack, Arm Attach, 1 Arm	5
16	R001605	Switch Kit
18	Canopy Replacement
The following parts are not displayed in the diagram above.
17	R019819-001	Owners Kit (manual & mounting screws)

Notes:
1: XXX = Color; XXX = Color; xxx = Length in inches.
2: 00X = 005 for White; 006 for Black
3: Two case connector configurations are used on the Marquee (item 12 – original, item 13 – new). Refer to Detail A, older style can be identified by the groove on the front face of the two holes through the top. The new and old connectors are not interchangeable. Identify the correct connector before ordering.
4: Motor kit (item 5) includes bearing, drive and end spacer.
5: Attaching hardware is not furnished with spring arm assemblies. Order item 16. Item 16 includes pins, set screw, retaining ring and bushings,
6: End plate kit (item 9) includes two end plates and hardware. End plates are universal and may be used on the left or right side.
7: Lead rail (item 8) includes end plate kit (item 9).
