Electronics: LED’s

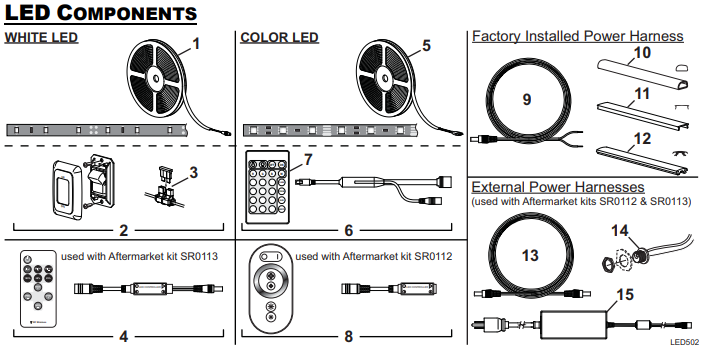

| Item # | Part Number | Description | Additional Information | Notes |
|---|---|---|---|---|
| White LED Strips & Components | ||||
| 1a | R060850-001 | LED Strip, Bright White | 6000K, 30LPM, 5M / 16′ | 1 |
| 1b | R060850-006 | LED Strip, Bright White | 6000K, 30LPM, 7.1M / 23.3′ | 1 |
| 1c | R001736 | LED Strip, Bright White | 8MMx1.25M, 30LPM, 8″ Lead | 1,2 |
| 1d | R060850-004 | LED Strip, Bright White | 6000K, 30LPM, 6.1M / 20′ | 1 |
| 2 | SR0101 | Switch and Fuse Kit (Includes item #3) | Used with White LED | 3 |
| 3 | R019493-001 | Fuse Kit (Includes fuse holder and a 2A fuse) | ||
| 4 | R001868 | RF Remote and Controller Kit | Used with Aftermarket Kit SR0113 | 3 |
| Alternate to white LED’s. Shares White LED components | ||||
| ∞ | R001884 | LED Strip, Yellow | 3000K,16′ w/ 26″ Lead,60LPM | |
| ∞ | R001886 | LED Strip, Pink | 2500K,16′ w/ 26″ Lead, 60LPM | |
| ∞ | R001907 | LED Strip, Blue | 16′ w/ 8″ Lead, 18LPM | |
| ∞ | R001908 | LED Strip, Blue | 16′ w/ 26″ Lead, 18LPM | |
| RGB LED Strips & Components | ||||
| 5a | R060733-001 | LED Strip, RGB, 16′ w/ 8″ Lead | 1,6 | |
| 5b | R060733-002 | LED Strip, RGB, 16′ w/ 26″ Lead | 1,6 | |
| 6 | SR0109 | IR Remote and Controller Kit | RGB | |
| 7 | SR0114 | IR Remote | Used with SR0109 (Item #6) | |
| 8 | R001869 | RF Remote and Controller Kit | Used with Aftermarket Kit SR0112 | 3 |
| Universal Components | ||||
| 9a | R001718 | Harness w/ Bungee | Used on canopy with metal wrap | |
| 9b | R060740-001 | Harness, Twisted, 24awg, 16′ Length | ||
| 9c | R060718-001 | Harness, Twisted, 24awg, 22′ Length | Used on Big Box Awnings | |
| 9d | R060715-002 | Harness, Twisted, 24awg | Used on Latitude, Longitude, Altitude & Compass | |
| 10 | R040616-206 | Wire Channel | 43″ Length | |
| 11 | R001716 | Slot Cover, Roller Tube, Box Awning | 24″ Length | |
| 12 | R041313-001 | Slot Cover, Awning Rail Adaptor | ||
| 13 | R060724-001 | Power Cord, 12V | External Power Supply | |
| 14 | R060275 | Power Socket, 12V | External Power Supply | |
| 15 | R060725-001 | AC/DC Power Supply 110AC to 12Vdc | External Power Supply | |
| 16 | SR0113 | White LED Upgrade Kit | Not Shown | 4 |
| 17 | SR0112 | RGB LED Upgrade Kit | Not Shown | 5 |
Notes: 1: LED strips (items 1 & 5) are sent on rolls and cut to length during installation.
2: Item 1c (LED Strip, White, 49″) is used for Marquee awnings 66″ or shorter.
3: RF remotes are not available separately. It is necessary to replace the remote and controller.
4: White LED upgrade kit (SR0113) contains items 1b, 4, 13, 14 & 15.
5: RGB LED upgrade kit (SR0112) contains items 5b, 8, 13, 14 & 15.
6: LED strips with 26″ leads are used for awnings 19′ and longer to allow the strip to be centered.
7: White and RGB components are NOT Interchangeable.
8: IR and RF receivers and remotes are NOT interchangeable.
