Head Attach – Eclipse Arms Series 1
Head Attach Kit replacement for Carefree Eclipse Arms Series 1 motor.

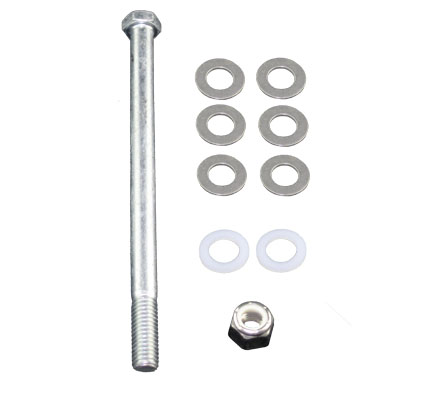

Color = SATIN . Use this Kit to install Series 1 Motor to Eclipse Right Arm. Kit consists of Bolt ( 3/8″ – 16″ x 6″ ), 8 Spacers and Nut.
See Important Considerations below.
$32.95
- CAUTION: The arms are under tension from the gas shocks. When the motor is disengaged from the gears, the roller tube will be able to free spin and both arms will extend from the gas shock tension. Use extreme care and hold the arms in position. It will be necessary to have at least one other person holding the idler arm.
- CAUTION: Do not allow the roll bar to drop toward the ground. The twisting motion can cause serious damage to the idler arm.
- Tip: When the nut is removed, the bolt will slide out of the arm mounting block inside the arm channel. Placing tape on the head of the mounting bolt and the spacers will prevent the bolt and the spacers from falling out when the nut and motor are removed ( see Service Manual located on website ).
