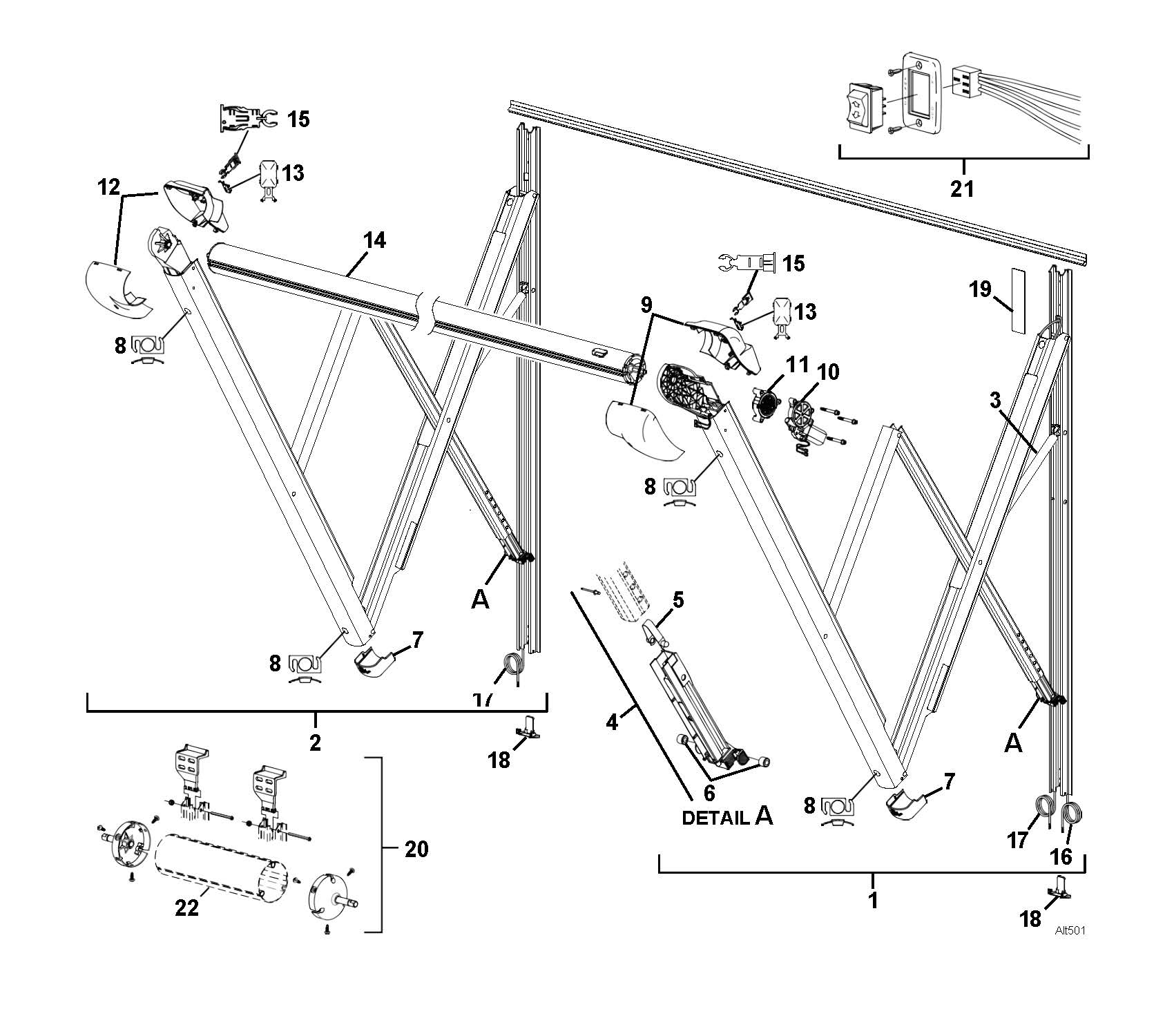

Callout # Part Number Description Notes
1 R001934XXX Arm Assy, Motor Side, RH *Part is obsolete-order R001988XXX
2 R001935XXX Arm Assy, Idler Side, LH *Part is obsolete-order R001989XXX
3 R001826 Gas Shock
4 R001927-00X Kit, Pitch Adjust Assembly 1
5 R002019-002 Pitch Adjustment Pins pkg of 2
6 R001840 Kit, Roller Replacement
7 R001929-00X Arm End Cap
8 R001930-00X Kit, Hole Plug pkg of 4
9 R001931-00X Cover Kit, Motor 2
10 R001832 Motor
11 R001833 Gear Box
12 R001932-00X Cover Kit, Idler 2
13 R001835-00X Kit, Clip Hole Cover Cap
14a R001841-xxx Roller Tube Assy, No LED
14b R001842-xxx Roller Tube Assy, w/LED
15 R001836 Kit, Retaining Clip 1 ea LH & RH
16 R001837 Power Harness, Motor
17 R001933 Power Harness, Auxiliary
18 017719-006 Wire Cover, Lower pkg of 2
19 R041331-006 Wire Cover, Upper
20 R017715-00X Aftermarket Hardware Pack 3
21 R019487-003 Switch Kit, Awning
22 19__00
19__00RB		 Roller Tube, 4-Slot, No LED
Roller Tube, 4-Slot, w/White LED



Notes: XXX = BLK – Black, WHT – White
00X = Color; 005 = White; 006 = Black. xxx = Length in inches.
1. Includes items 5,6 and rivet.
2. Head cover kits include one front cover and one rear cover.
3. Switch kit includes switch, faceplate, screws and connector.

Altitude

Power Pitch

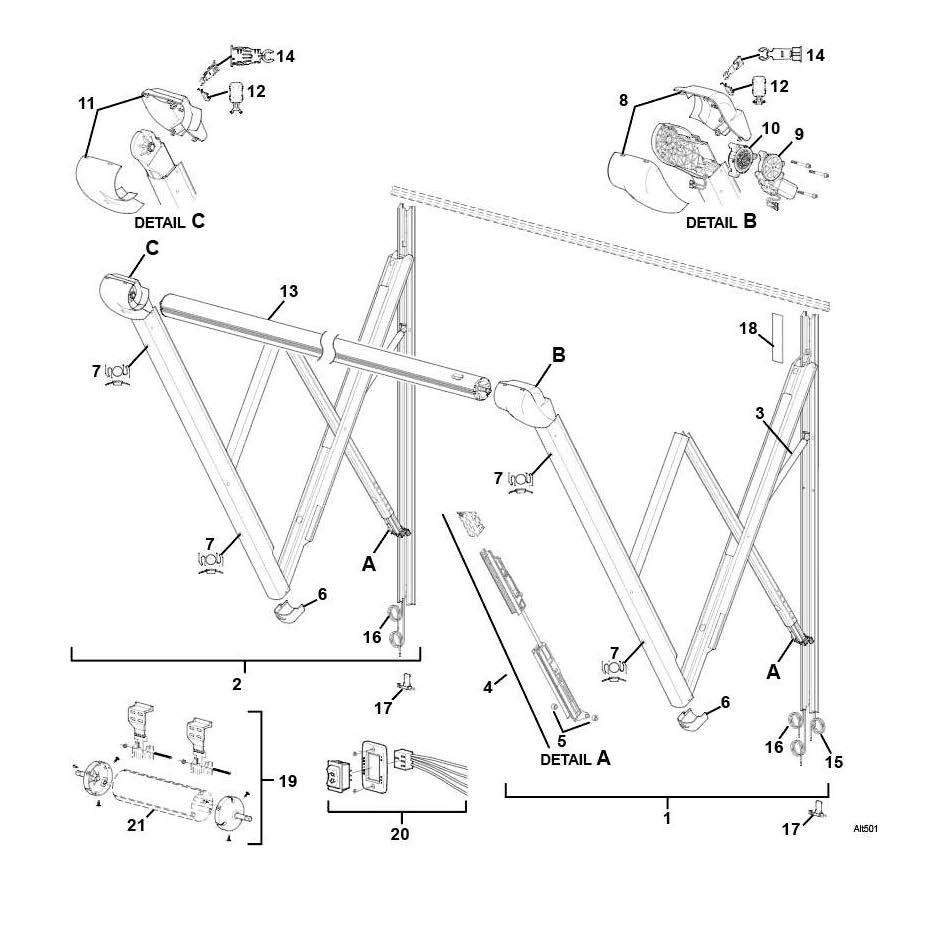

Callout # Part Number Description Notes
1 R002050XXX Arm Assy, Motor Side, RH *Part is obsolete-order R001988XXX and R002024-00X
2 R002051XXX Arm Assy, Idler Side, LH *Part is obsolete-order R001989XXX and R002024-00X
3 R001826 Gas Shock
4 R002024-00X Kit, Power Pitch Assy, Complete 1
5 R002064 Kit, Roller Replacement, SST Rivets
6 R001929-00X Arm End Cap
7 R001930-00X Kit, Hole Plug pkg of 4
8 R001931-00X Cover Kit, Motor 2
9 R001832 Motor
10 R001833 Gear Box
11 R001932-00X Cover Kit, Idler 2
12 R001835-00X Kit, Clip Hole Cover Cap
13a R001841-xxx Roller Tube Assy, No LED
13b R001842-xxx Roller Tube Assy, w/LED
14 R001836 Kit, Retaining Clip 1 ea LH & RH
15 R001837 Power Harness, Motor
16 R001933 Power Harness, Auxiliary
17 017719-006 Wire Cover, Lower pkg of 2
18 R041331-006 Wire Cover, Upper
19 R0017715-00X Aftermarket Hardware Pack 3
20 R019487-003 Switch Kit, Awning
21 19__00
19__00RB		 Roller Tube, 4-Slot, No LED
Roller Tube, 4-Slot, w/White LED



Notes 00X = Color; 005 = White; 006 = Black. xxx = Length in inches.
1. Includes items 4, 5, and rivet.
2. Head cover kits include one front cover and one rear cover.
3. Switch kit includes switch, faceplate, screws and connector.
