Box Awnings: Wall Mount (WM)

Still can’t find what you have?
Find a Dealer to help!
Identify My Awning -> Patio Awnings -> Box Awnings Identification -> Box Awning Wall Mount
View Discontinued Products

Freedom WM

12V or Manual

 • Closes into a case for a low profile
 • Has support legs hiding in lead rail
 • Compact design
 • Available in powered or manual versions
 • Closes into a case for a low profile
 • Has support legs hiding in lead rail
 • Compact design
 • Available in powered or manual versions


Found your serial or part number?

Try our Serial # Search
Use the 1-Click reordering tool

Example Images:

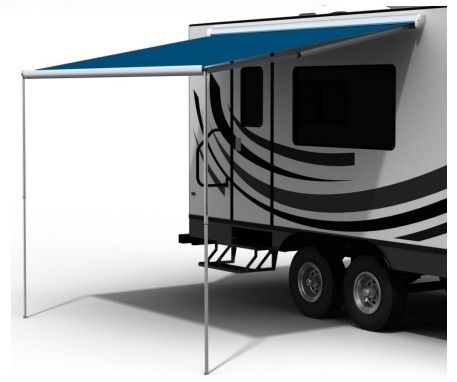

View of Awning: Vehicle Support


Contains vertical support legs in the lead rail you would fold down for support

Click anywhere to close image popup

Carefree Compass Awning

View of Awning: Carport Mode

Click anywhere to close image popup

Carefree Compass Awning

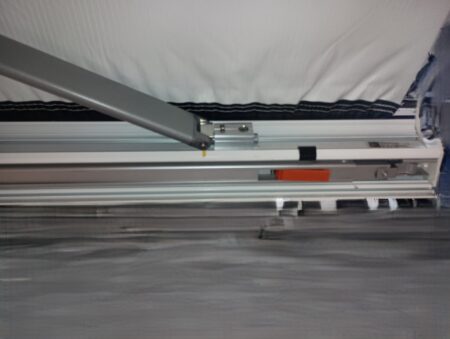

Inside Lead Rail


Notice the orange tab used to fold down the support arms

Click anywhere to close image popup

Carefree Compass Awning

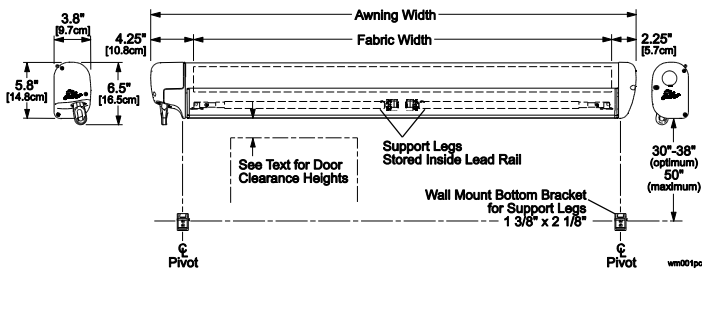

Dimensions

Click anywhere to close image popup

Carefree Compass Awning

SN/PN Location

Click anywhere to close image popup

Carefree Compass Awning


Freestyle WM

12V

 • Closes into a case for a low profile
 • No support legs to fold down
 • Compact design
 • Auto-retract feature by default
 • Powered only
 • Closes into a case for a low profile
 • No support legs to fold down
 • Compact design
 • Auto-retract feature by default
 • Powered only


Found your serial or part number?

Try our Serial # Search
Use the 1-Click reordering tool

Example Images:


View of Awning


Does not contain vertical support legs and just hangs out there.

Click anywhere to close image popup

Carefree Compass Awning

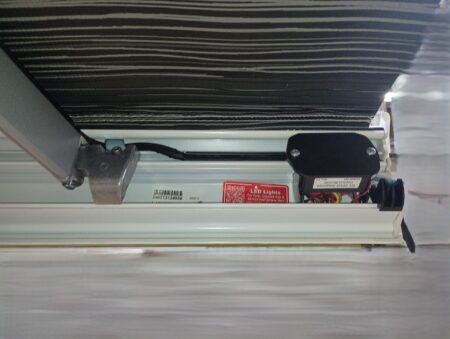

Inside Lead Rail


Notice the black box (Motion Sensor) mounted inside the lead rail.

Click anywhere to close image popup

Carefree Compass Awning

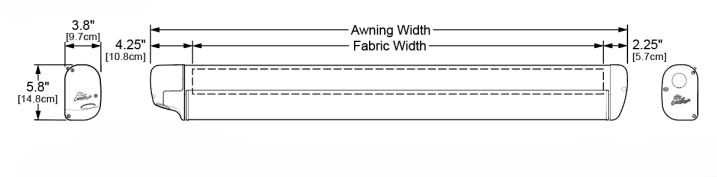

Dimensions

Click anywhere to close image popup

Carefree Compass Awning

SN/PN Location

Click anywhere to close image popup


Does not contain any vertical support legs and just hangs out there.
Carefree Compass Awning


Mirage

110V

 • Closes into a case for a low profile
 • No support legs to fold down
 • Single or Dual Pitch models
 • Auto-retract feature by default
 • Can be opened or closed manually if power lost
 • Closes into a case for a low profile
 • No support legs to fold down
 • Single or Dual Pitch models
 • Auto-retract feature by default
 • Can be opened or closed manually if power lost


Found your serial or part number?

Try our Serial # Search
Use the 1-Click reordering tool

Example Images:


View of Single Stage Variant


Maintains a consistent pitch.

Click anywhere to close image popup

Carefree Compass Awning

View of Dual Stage Variant


Switches to a steeper pitch around the 1/2 way point.

Click anywhere to close image popup

Carefree Compass Awning

View of End Cap

Click anywhere to close image popup

Carefree Compass Awning

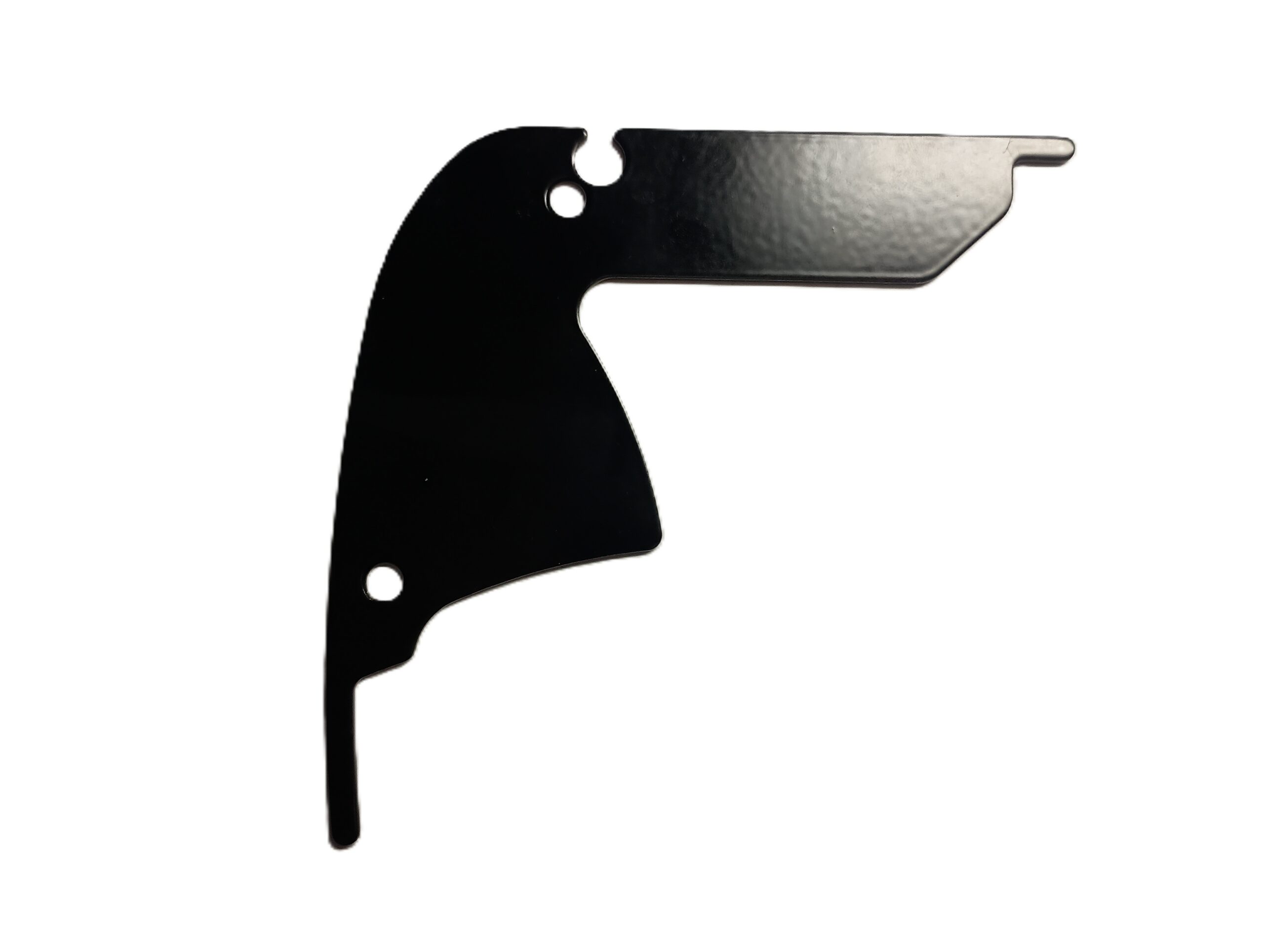

View of Lead Rail End Plate

Awning must be open to view.

Click anywhere to close image popup

Carefree Compass Awning

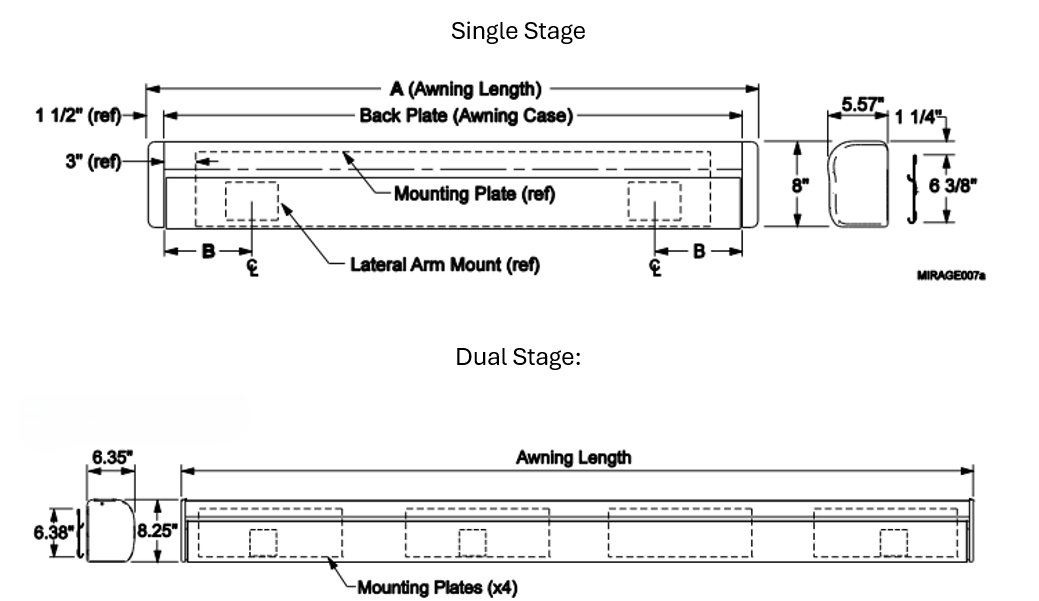

Dimensions

Click anywhere to close image popup

Carefree Compass Awning

SN/PN Location

Click anywhere to close image popup

Carefree Compass Awning
