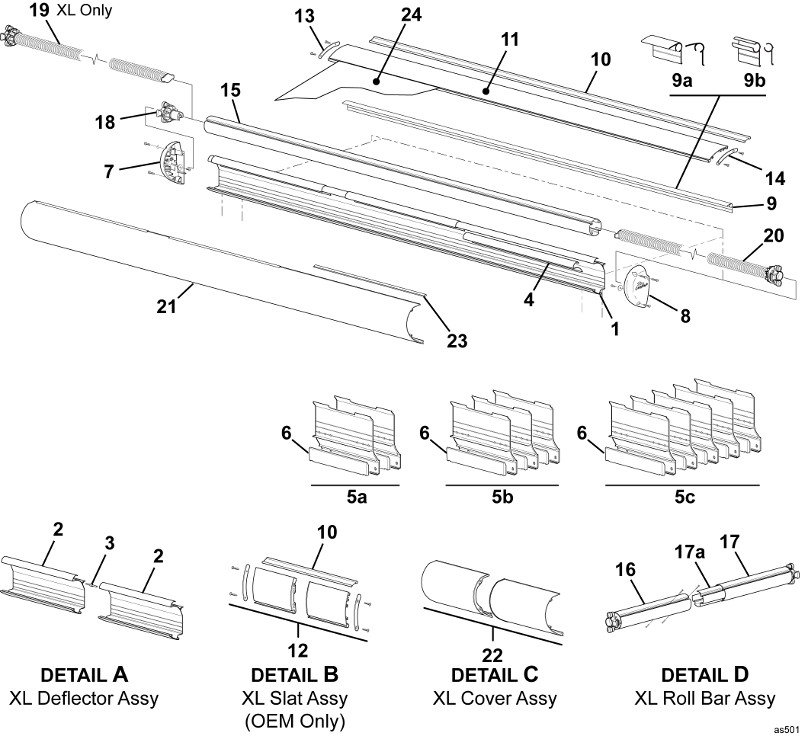

| Callout # |
Part Number |
Description |
Suggested USD Retail |
| 1 |
R001564------- |
Deflector |
from $268.32 |
| 2 |
R001565------- |
Deflector, Half |
from $436.07 |
| 3 |
R001555 |
Spacer, Shoulder |
from $23.30 |
| 4 |
R001563 |
Deflector Glide, 24" |
from $25.11 |
| 5a |
KY55-- |
Bracket Kit, 2 Brackets, Deflector Mount |
from $91.30 |
| 5b |
KY55-- |
Bracket Kit, 3 Brackets, Deflector Mount |
from $91.30 |
| 5c |
KY55-- |
Bracket Kit, 5 Brackets, Deflector Mount |
from $146.30 |
| 6 |
R001151--- |
Mounting Bracket Cover |
from $16.87 |
| 7 |
R001554--- |
End Cap, LH |
from $31.38 |
| 8 |
R001556--- |
End Cap, RH |
from $31.38 |
| 9a |
610701---- |
Hooded Awning Rail |
from $88.21 |
| 9b |
610700------ |
Standard Awning Rail |
from $31.91 |
| 10 |
R001573------- |
Flex Connect |
from $94.84 |
| 11 |
R001566------- |
Weather Slat (Standard - 1 piece) |
from $266.66 |
| 12 |
R001567------- |
Weather Slat (XL Only - 2 pieces) |
from $558.46 |
| 13 |
R001553--- |
End Plate, Slat, LH |
from $28.22 |
| 14 |
R001558--- |
End Plate, Slat, RH |
from $28.22 |
| 15 |
R001568---- |
Roller Tube Assembly (Standard) |
from $207.06 |
| 16 |
R001569---- |
Roller Tube Half, LH (XL) |
from $317.73 |
| 17 |
R001572---- |
Roller Tube Half, RH (XL) |
from $326.78 |
| 17a |
R038303-008 |
Splice |
from $30.29 |
| 18 |
R001559 |
Spindle and Bearing Assembly, LH (Standard) |
from $25.11 |
| 19 |
R001561 |
Spring Assembly, LH (XL) |
from $125.50 |
| 20 |
R001560 |
Spring Assembly, RH |
from $125.50 |
| 21 |
R001570------- |
Cover Assembly (Standard) |
from $329.44 |
| 22 |
R001571------- |
Cover Assembly (XL only) |
from $796.89 |
| 23 |
R001562 |
Bumper, Front Cover |
from $24.65 |
| 24 |
Canopy Information |
Canopy |
|
